US$14,650.00-29,850.00
|
1 Piece
(MOQ)
|
Basic Info.
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Loading Capacity
30t, 30ton, 30tons, 30mt
Tank Size
60m3, 60cbm, 60000liters, 60000L
Thickness of End Plate
16mm
Design Pressure
1.71MPa 1.77MPa 17.1bar, 17.7bar
Hydraulic Test Pressure
2.21MPa 22.1bar
Filling Medium
Propane, Butane, LPG, Cooking Gas
Level Gauge
Magnetic Plate Level Gaue, Float-Ball
Overail Size
10962X2728X3318mm
Transport Package
Naked with Wax
Specification
60000L, 60cbm, 6000liters, 60m3, 30tons, 30ton
Production Capacity
500 Unit/Month
Product Description

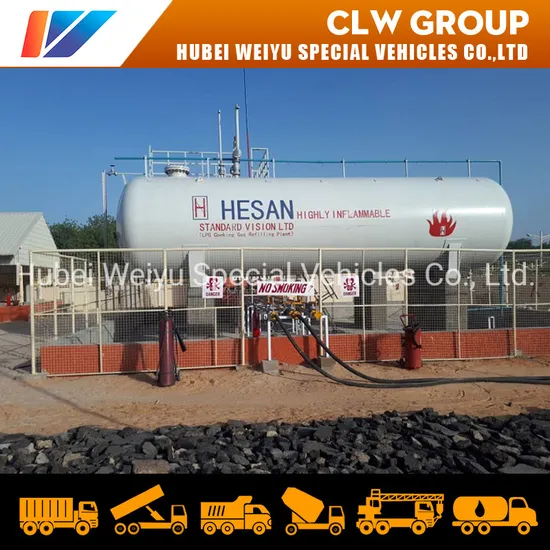

30mt gas station solution 30tons 60000liters 60000L LPG plant tank gas cylinder filling station with pump compressor filling machine
Product Description
1. Storage medium of gas station: LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of gas station : 5m³~200m³,2ton~100tons
3. Manufacturing standards of gas station: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Specification of 30mt LPG Stationary Storage Tank
| Parameter of 60000liters 30tons LPG Stationary Storage Tank |
| ITEM | PARAMETER | ITEM | PARAMETER |
| Volume | 60cbm | Thickness of Shell | 14mm |
| Tank Material | Q345R | Thickness of End plate | 16mm |
| Overall Size | 10962*2728*3318mm | Tank Net Weight | 12750kg |
| Tank Diameter | 2700mm | Loading Capacity | 23940kg |
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 |
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm |
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk |
| Vapor Outlet | DN50 | Gas Outlet | DN50 |
| Life time | 15 years | | |
| Accessories |
| Model | Item | Qty | Junction surface |
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF |
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF |
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF |
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | |
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF |
| A42F-25-100 | Safety Valve DN100 | 1 | RF |
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | |
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC |
