Stainless steel Main Body made PP lldPE film soft material recycling line

Product Description

Product Description
1.This line is used recycle waste plastic,Main material include PE HDPE LDPE LLDPE PP Film ,Woven bags ,jumbo bags ,cement bags ,agriculture film ,stretch film,shrink film, stretch film,packing film etc.
2.The line main equipment incude crusher machine,friction washer machine,roller float washing tank,hot washing tank,High speed friction washer machine,centrifugal dewatering machine,hot air dryer system.storage silo etc.
Application:
The finally product is film or bags flakes ,it will be used to pelletizer,after pelletizer ,It will make new plastic product.
Economic Type Recycling step:1.Conveyor belt → Plastic crusher machine (Wet crusher) →Friction Washing machine→Float washing tank→Friction washing machine→Horizontal centrifugal dewatering machine→hot air dryer system→Storage Silo→Electric Control panel
Advance type Recycling step:1.Conveyor belt → Plastic crusher machine (Wet crusher) →Friction Washing machine→1# Float washing tank→Friction washing machine→2# Float washing tank→Friction washing machine→Horizontal centrifugal dewatering machine→hot air dryer system→Storage Silo→Electric Control panel

Advance type + Hot washing plant Recycling step:1.Conveyor belt → Plastic crusher machine (Wet crusher) →Friction Washing machine→1# Float washing tank→Screw loader→Hot washing tank(include feeding and loading up screw)→High Speed Friction washing →2# Float washing tank→Friction washing machine→Horizontal centrifugal dewatering machine→hot air dryer system→Storage Silo→Electric Control panel

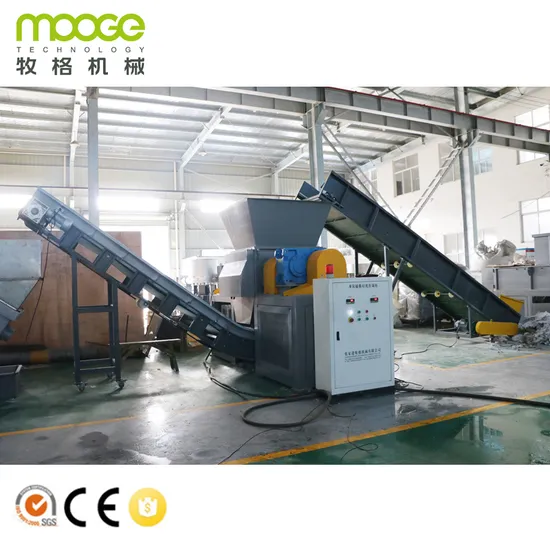

Advance type + Shredder machine Recycling step:1.Conveyor belt → Plastic shredder machine (single shaft or double shaft) →Friction Washing machine→1# Float washing tank→Friction washing machine →2# Float washing tank→Friction washing machine→Horizontal centrifugal dewatering machine→hot air dryer system→Storage Silo→Electric Control panel

Finally Product:Plastic film/bags flakes
Product Parameters
Standard system

Model	Capacity	Installed Power	Water supply	Manpower	Area Required	Mositure Content	Final Product Size
ME-300	300kg/hr	150kw	4-5m³	1-2	24*4*5m	5~8%,after hot air dryer ,<1%	60mm
ME-500	500kg/hr	225kw	6-8m³	1-2	25*4*5m	5~8%,after hot air dryer ,<1%	60mm

Advanced system

Model	Capacity	Installed power	Hot Washing	Water Supply	Manpower	Area required
ME-300	300kg/hr	200kw	Optional	6-8m³/hr	1-2	40m*4m*5m
ME-500	500kg/hr	350kw	Optional	8-10m³/hr	1-2	40m*4m*5m
ME-1000	1000kg/hr	600kw	Optional	15-20m³/hr	2-3	55m*6m*6m

Our service
Before Sales Service1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager ) 2. Professionally and patiently introduction, details pictures and working video to show machineOn Sales Service1. Test every machine and inspect the machine seriously. 2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok. 3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.After Sales Service1. Free insurance for goods 2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
Certifications
Our Exhibition

---
