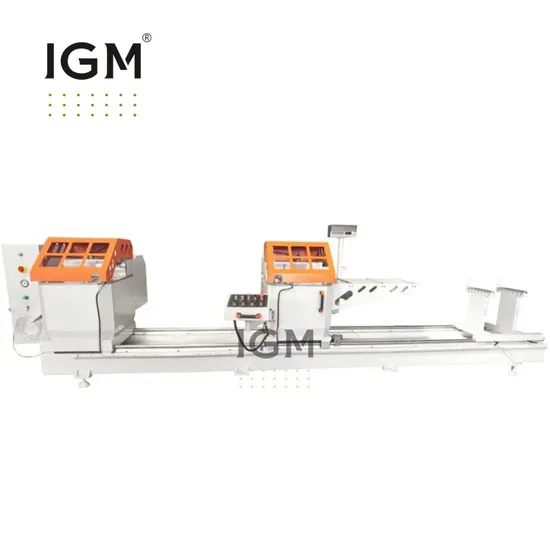

Digital Measuring Ruler up Cutting Aluminum Window Door Two Head Cutting Saw

Product Description

Product Description
Digital Measuring Ruler Up Cutting Aluminum Window Door Two Head Cutting Saw Model: LJZ2E-CNS-500*4200Application : Making Aluminum Window Door
Function : Cutting 45 /90 Degrees Angles of aluminum profiles
Main Features of Two Head Cutting Saw
1.Saw blade cuts from bottom to top max. width up to 300 mm and is used for cutting aluminum window door ,curtain walls, and industrial aluminum profiles.
2. Pneumatic swing angle of 45 and 90 degrees.
3. With Digital measuring ruler, convenient and fast.
4. Coolant spray to improve cutting quality.
5. The longest cutting length is 4200 mm, and customized length is supported.
6. The saw blades from Japan WAGEN are used for a long service life.
7. Both heads have horizontal and vertical clamping.
8.The spindle motor makes the saw blade feed more stable.
9. Auto opening safe shield to make the user safe.
Technical Parameters of Two Head Cutting Saw

Product Name	Two Head Cutting Saw
Model	LJZ2E-CNS-500*4200
Working Air Pressure	0.5 -0.8 Mpa
Power Supply	220V /380V / 415V 50 /60Hz (Customized)
Input Power	2.2kw*2
Blade Specification	¢500mm
Rotary Speed	2850 r/min
Cutting Angle	45°, 90°
Cutting Height	110-150 mm
Cutting Width	250-350 mm
Gross Weight	1700 KGS
Brand	IGM
Operation Manual	√
Operation Video	√
Color Customization	√
MOQ	1 SET
Overall Size	5800*1400*1700mm

Detailed Photos

Control panel, language is customized according to requirements; buttons are from well-known brands and durable.
With Digital measuring ruler, convenient and fast.

Cut from bottom to top, angle 45 / 90 degrees, maximum width 350mm. Cutting height 110mm at 45 degrees , 150mm at 90 degrees .
Adjustable coolant spray extends the life of the saw blade and improves cutting results.
Cutting Effiect:
High cutting precision, no burrs, and no gaps in splicing.
Pneumatic components and electrical components adopt world-renowned brands, which are stable and safe.
Precision square guide rail, high repeatability positioning accuracy.
2.2KW high power spindle motor
Drives the saw blade to rotate, runs smoothly and with high precision
Packaging & Shipping
LCL: Two Head Cutting Saw is packed in fumigation-free plywood, the pallet is thickened and raised, and the machine base is fixed with steel wire.
FCL: Generally, the outer packaging is plastic film, and the machine is fixed in a 20/40-foot container with steel wire or special packaging tape; the outer packaging can also be selected as a fumigation-free wooden box according to requirements. Extra-high-size machines require open-top cabinets.
We have many years of export and loading experience. While ensuring the safety of the machines, we rationally plan and utilize container space to save transportation costs for our customers.
Company Profile
Company Introduction: JINAN IGM INTERNATIONAL CO., LTD.
About Us: JINAN IGM INTERNATIONAL CO., LTD. is a leading enterprise located in Jinan, China, specializing in the design, manufacturing, and distribution of high-quality Industrial Aluminum Proifle Processing Machine, UPVC window door machine and double glazing making machine. Our company is committed to providing innovative and customized solutions to meet the diverse needs of our global clientele.
Products and Services: We offer a comprehensive range of machinery that caters to the manufacturing of aluminum and UPVC windows, as well as double glazing solutions. Our products are engineered for precision, efficiency, and durability, ensuring that our customers can produce high-quality windows that meet international standards.
Market Presence: Our advanced machinery has found extensive applications across North America, South America, Europe, the Middle East, and other regions. Our global presence is a testament to our commitment to quality and customer satisfaction.
Research and Development: At JINAN IGM INTERNATIONAL CO., LTD., we place a strong emphasis on research and development. Our dedicated R&D team works tirelessly to innovate and enhance our product offerings. We stay at the forefront of technological advancements to ensure our machinery remains cutting-edge and capable of meeting the evolving needs of the market.
Customization Capabilities: Understanding that every customer has unique requirements, we offer tailored solutions to address specific production needs. Our customization capabilities ensure that each machine is designed and configured to optimize performance and efficiency for our clients' operations.
Standardized Processes: From procurement to production and quality inspection, JINAN IGM INTERNATIONAL CO., LTD. adheres to standardized processes to maintain the highest levels of quality and consistency. Our rigorous quality control measures ensure that every machine leaving our facility meets the stringent standards expected by our customers.
Quality Assurance: Quality is at the heart of everything we do. Our standardized production processes and thorough quality inspections guarantee that our machines deliver reliable performance and long-lasting durability. We are committed to excellence in every aspect of our operations, ensuring our customers receive products they can trust.
Conclusion: JINAN IGM INTERNATIONAL CO., LTD. is your trusted partner for high-performance window manufacturing machinery. With our advanced R&D capabilities, extensive customization options, and unwavering commitment to quality, we are dedicated to helping our customers achieve success in their respective markets. Choose IGM for innovative solutions and exceptional service.
Our Advantages
1. Technical capability and innovation capability:
IGM has a senior R&D and design team with 15-20 years of industry experience; the company's annual R&D cost accounts for about 10%-15% of its profits, and it launches an industry-leading product every one to two years; it has numerous invention patents and utility model patents, and the number and technical level belong to the first echelon in China.
2. Ultimate product quality and reliability:
Our factory has passed international quality certification systems such as ISO and BV. The equipment has a low failure rate and a long service life. The market is very satisfied with product quality and customer satisfaction surveys.
3. High production capacity and efficiency:
The factory covers an area of 15,000 square meters, has its own machining workshop and sheet metal processing workshop; has more than 80 employees; ERP management has been implemented from procurement, finance, orders, production, and delivery, with a high degree of optimization of production processes, high production efficiency, and reduced production costs.
4. Market share and brand influence:
Market coverage: market share and distribution at home and abroad.
Brand awareness and reputation: brand awareness, reputation and customer loyalty within and outside the industry.
Sales network and service network: the breadth of sales channels and the coverage of after-sales services.
5. Customer customization capabilities:
Provide customized solutions based on customer needs; respond faster to customer needs and market changes.
After Sales Service
Installation and commissioning services
On-site installation support: Provide professional technicians to install equipment on-site.
Equipment commissioning: Ensure that the equipment can operate normally after installation, including commissioning and testing.
1,Technical training:
Operation training: Provide equipment operation training to customers' operators to ensure that they can use the equipment correctly and safely.
Maintenance training: Provide equipment maintenance and maintenance training to customers' maintenance personnel to improve the service life and reliability of equipment.
2,Maintenance and maintenance:
Regular inspection: Provide regular equipment inspection services to discover and solve potential problems and prevent failures.
Preventive maintenance: Provide preventive maintenance suggestions and services based on the use and characteristics of the equipment.
3,Maintenance services:
Quick response: Establish a quick response mechanism to handle customer maintenance requests in a timely manner.
Remote support: Provide remote technical support through telephone, video and other means to solve equipment failures.
Spare parts supply: Ensure the timely supply of spare parts and reduce downtime caused by spare parts shortages.
4,Technical support and consulting:
24/7 support: Provide round-the-clock technical support and consulting services to answer customer questions at any time.
Provide technical information, FAQs and real-time consultation.
5,Warranty service:
Warranty period: longer warranty time - 18 months, provide lifelong after-sales service.
6,Customer feedback and improvement:
Regularly contact customers to actively understand the use of equipment and customer satisfaction.
Attach importance to customer feedback and continuously improve products and services based on customer suggestions.
7, Upgrade and transformation service:
According to technological development and customer needs, provide equipment upgrade services to improve equipment performance.
Provide customers with equipment transformation solutions to meet special process requirements or improve production efficiency.

---
