High-Performance 100L Vacuum Mixing Tank for Battery Slurry

Product Description

Product Description Main Configuration: Experience the perfect blend of advanced engineering and premium quality components. The Efficient 100L Vacuum Mixing Storage Tank is equipped with the latest automation technologies and robust materials to ensure optimal reliability and performance. Every detail is meticulously designed to guarantee seamless operation and maximum productivity.

No.	Item	Configuration
1	Equipment appearance	A3 Paint,International warm grey color 1C
2	Three phase asynchronous VFD	Standard configuration
3	Motor VVVF	Standard configuration
4	Lift mechanism	Optional
5	Upper and lower liquid level detection	Optional
Note: If there are special requirements or additional/reduced items (such as adding/reducing pipe openings), please provide additional explanations. The main switch power cord of the equipment inlet box and the hot and cold water pipes connected to the mixing tank interface can be prepared by the customer themselves.

Product Parameters Working Principle and Relevant Parameters: Delve into the advanced working principles that power the Efficient 100L Vacuum Mixing Storage Tank. This sophisticated equipment utilizes cutting-edge vacuum technology to ensure uniform and consistent mixing, critical for the production of high-quality Lithium-Ion Battery Slurry. The accompanying parameters highlight its superior efficiency and operational excellence.

Usage	This model is mainly suitable for pre mixing solvents such as PVDF and NMP
Working principle	The power on signal is given through the control panel, and the mixing head of the premix tank is operated at the set speed. The mixing head of the premix tank is composed of a transmission part connected by three sets of motors on the barrel cover, which drives a set of low-speed mixing blades under the barrel cover and two sets of high-speed dispersers to operate. The mixing paddles and dispersers rotate independently in the mixing tank, and the mixing and power are driven by different motors, which can achieve independent stepless speed regulation.
Equipment Composition	Transmission part, sealed container, control system, etc
External dimension	1000mm x930mm x 1900 mm (L x W x H)
Tank specification	Internal diameter φ700mm depth 400mm
Design capacity	265L
Efficient usage capacity	200L
Mixing paddle speed	0-40 rpm, VVVF
Disperse disk speed	0-1400 rpm, VVVF
Mixing power	4 KW
Dispersing power	2.2 KW (Two groups 3KW)
Weight	About 0.85 ton

Equipment Capacity: With an impressive capacity of 100 liters, our Vacuum Mixing Storage Tank is designed to handle substantial volumes with ease. It's engineered for efficiency, ensuring that every batch of Lithium-Ion Battery Slurry is mixed to perfection, elevating the standards of your production line.

Item	Capacity
Applicable viscosity	Viscosity ≤100Kcps
Applicable solvent	NMP, deionized water, etc
Applicable additive	SBR,CNT,etc.
Applicable powder	PVDF,CMC
Failure rate	≤2%,
Bearing temperature	7ºC~80ºC,Customer is required to provide circulating hot and cold water
Measuring accuracy	±2ºC,Customer is required to provide circulating hot and cold water
Inner barrel pressure resistance	Long term water pressure ≤ 0.3Mpa, no deformation or leakage phenomenon
Not applicable	Acetone solvent

Other Optional Models: Explore a range of versatile options tailored to suit varying production needs. In addition to the 100L model, Kerui Sheng offers an array of configurations to cater to different scales of operation, each designed with the same commitment to quality and innovation.

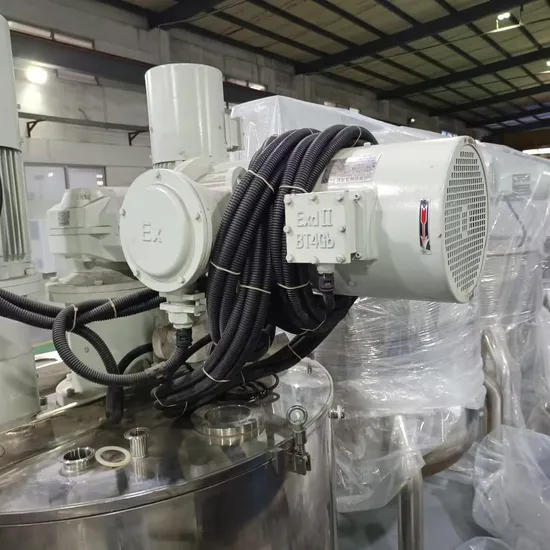

Detailed Photos
After Sales Service
FAQ If I place an order, what is the usual delivery time? -About 45-60 days How do you meet my needs.You need to tell us your production capacity, mixing materials, and the remaining requirements mentioned in particular. We will provide you with a solution based on your needs. At the same time, we will establish a dedicated production technology engineering communication and discussion group to ensure worry free throughout the process. Can you provide on-site installation and debugging services?
Yes, our company can send engineers to your local workshop to guide installation and commissioning, provide training, and accompany production.

---
