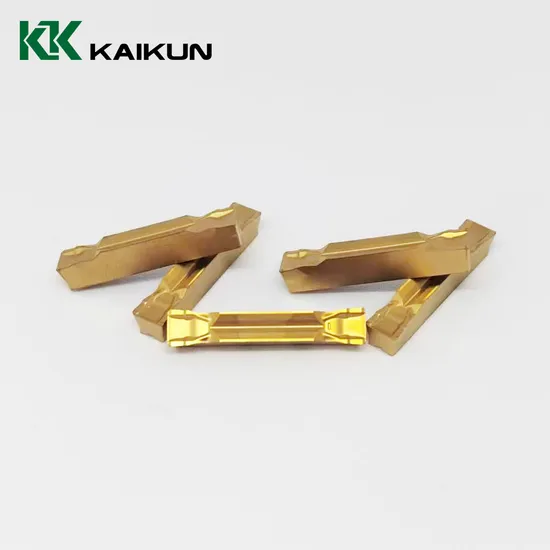

Mechanical Grooving Inserts CNC Inserts Xcmn2002-Gcg

US$1.25

20-99 Pieces

US$1.15

100-499 Pieces

US$1.05

500-999 Pieces

US$0.95

1,000-9,999 Pieces

US$0.75

10,000+ Pieces

Basic Info.

Model NO.

XCMN2002-GCG

Standard

DIN, JIS, ANSI

Customized

Non-Customized

Material

Alloy

Application

Metal Cutting Machine, Metal Processing Machinery Parts, Metal Casting Machinery

Product Name

Turning Inserts/Milling Inserts

Suitable for Materials

P M K N S

Customize or Not

Standard

Product Classification

Turning Inserts/Milling Inserts/Threading Insert/G

Transport Package

Carton Box

Specification

CCMT CNMT DNMG SNMG

Trademark

KKTOOL

Origin

China

Production Capacity

10000

Product Description

High Quality Roughing and Finishing CNC/PCD/CBN Carbide Milling /Turning /Threading/ Grooving Insert

Negative 80° (C) Rhombic Inserts		Dimensions (mm)					Negative 55° (D) Rhombic Inserts		Dimensions (mm)
		Type	d	l	s	d1			Type	d	l	s	d1
		CN_1204	12.7	12.9	4.76	5.16			DN_1104	9.52	11.62	4.76	3.81
		CN_1606	15.9	16.1	6.35	6.35			DN_1504	12.7	15.5	4.76	5.16
		CN_1906	19.1	19.3	6.35	7.94			DN_1506	12.7	15.5	6.35	5.16
Processing mode	Inserts Type	r (mm)	Recommended parameters				Processing mode	Inserts Type	r (mm)	Recommended parameters
			f (mm/rev)		ap (mm)					f (mm/rev)		ap (mm)
Finishing	CNMG 120404E-PB1	0.4	0.05-0.15		0.26-3.2		Finishing	DNMG 110404E-PB1	0.4	0.05-0.15		0.26-2.3
	120408E-PB1	0.8	0.10-0.30		0.52-3.2			150404E-PB1	0.4	0.05-0.15		0.26-3.1
	120412E-PB1	1.2	0.15-0.45		0.78-3.2			150408E-PB1	0.8	0.10-0.30		0.52-3.1
								150604E-PB1	0.4	0.05-0.15		0.26-3.1
	CNMG 120404E-MB2	0.4	0.05-0.15		0.26-3.2			150608E-PB1	0.8	0.10-0.30		0.52-3.1
	120408E-MB2	0.8	0.10-0.30		0.52-3.2			DNMG 150404E-MB2	0.4	0.05-0.15		0.26-2.9
Semifinishing	CNMG 120404E-PB3	0.4	0.06-0.18		0.30-3.5			150408E-MB2	0.8	0.10-0.30		0.52-2.9
	120408E-PB3	0.8	0.12-0.36		0.60-3.5		Semifinishing	150604E-MB2	0.4	0.05-0.15		0.26-2.9
	120412E-PB3	1.2	0.18-0.54		0.90-3.5			150608E-MB2	0.8	0.10-0.30		0.52-2.9
								DNMG 150404E-PB3	0.4	0.06-0.18		0.30-3.1
	CNMG 120404E-PC3	0.4	0.07-0.20		0.34-3.9			150408E-PB3	0.8	0.12-0.36		0.60-3.1
	120408E-PC3	0.8	0.14-0.40		0.68-3.9			150412E-PB3	1.2	0.18-0.54		0.90-3.1
	120412E-PC3	1.2	0.20-0.60		1.02-3.9			150604E-PB3	0.4	0.06-0.18		0.30-3.1
	190608E-PC3	0.8	0.14-0.40		0.68-5.8			150608E-PB3	0.8	0.12-0.36		0.60-3.1
	190612E-PC3	1.2	0.20-0.60		1.02-5.8			150612E-PB3	1.2	0.18-0.54		0.90-3.1
Medium	CNMG 120404E-PD3	0.4	0.08-0.22		0.40-4.3			DNMG 110408E-PC3	0.8	0.14-0.40		0.68-2.6
	120408E-PD3	0.8	0.15-0.44		0.80-4.3			110412E-PC3	1.2	0.20-0.60		1.02-2.6
	120412E-PD3	1.2	0.23-0.66		1.20-4.3			150404E-PC3	0.4	0.07-0.20		0.34-3.5
	160608E-PD3	0.8	0.15-0.44		0.80-5.3			150408E-PC3	0.8	0.14-0.40		0.68-3.5
	160612E-PD3	1.2	0.23-0.66		1.20-5.3			150412E-PC3	1.2	0.20-0.60		1.02-3.5
	190608E-PD3	0.8	0.15-0.44		0.80-6.4			150604E-PC3	0.4	0.07-0.20		0.34-3.5
								150608E-PC3	0.8	0.14-0.40		0.68-3.5
								150612E-PC3	1.2	0.20-0.60		1.02-3.5
Positive 90°(S)Square Inserts		Dimensions (mm)					Negative 90°(S) Square Inserts		Dimensions (mm)
		Type	d	l	s	d1			Type	d	l	s	d1
		SC_09T3	9.5	9.5	3.97	4.40			SN_1204	12.70	12.70	4.76	5.16
		SC_1204	12.7	12.7	4.76	5.50			SN_1506	15.87	15.87	6.35	6.35
		SC_3809	38.1	38.1	9.52	9.80			SN_1906	19.05	19.05	6.35	7.94
Processing mode	Inserts Type	r (mm)	Recommended parameters				Processing mode	Inserts Type	r (mm)	Recommended parameters
			f (mm/rev)		ap (mm)					f (mm/rev)		ap (mm)
Finishing	SCMT 09T304E-PB1	0.4	0.04-0.14		0.30-2.4		Finishing	SNMG 120404E-PB1	0.4	0.05-0.15		0.26-3.2
	09T308E-PB1	0.8	0.09-0.28		0.60-2.4			120408E-PB1	0.8	0.10-0.30		0.52-3.2
	120404E-PB1	0.4	0.04-0.14		0.30-3.2			120412E-PB1	1.2	0.15-0.45		0.78-3.2
								SNMG 120404E-MB2	0.4	0.05-0.15		0.26-3.2
								120408E-MB2	0.8	0.10-0.30		0.52-3.2
Semifinishing	SCMT 09T304E-PC2	0.4	0.05-0.16		0.35-2.9		Semifinishing	SNMG 120404E-PC3	0.4	0.07-0.20		0.34-3.8
	09T308E-PC2	0.8	0.10-0.32		0.70-2.9			120408E-PC3	0.8	0.14-0.40		0.68-3.8
	120404E-PC2	0.4	0.05-0.16		0.35-3.8			120412E-PC3	1.2	0.20-0.60		1.02-3.8
	120408E-PC2	0.8	0.10-0.32		0.70-3.8		Medium	SNMG 120404E-PD3	0.4	0.08-0.22		0.40-4.2
	120412E-PC2	1.2	0.16-0.48		1.05-3.8			120408E-PD3	0.8	0.15-0.44		0.80-4.2
	SCGT 09T308F-NC2	0.8	0.10-0.40		0.64-4.3			120412E-PD3	1.2	0.23-0.66		1.20-4.2
	SCMT 09T304E-KC2	0.4	0.06-0.18		0.40-3.1			190608E-PD3	0.8	0.15-0.44		0.80-6.3
	09T308E-KC2	0.8	0.12-0.36		0.80-3.1			SNMG 120408E-SC3	0.8	0.15-0.44		0.80-4.2
	120404E-KC2	0.4	0.06-0.18		0.40-4.2			120412E-SC3	1.2	0.23-0.66		1.20-4.2
	120408E-KC2	0.8	0.12-0.36		0.80-4.2			150612E-SC3	1.2	0.23-0.66		1.20-5.2
	120412E-KC2	1.2	0.18-0.54		1.20-4.2			150616E-SC3	1.6	0.30-0.88		1.60-5.2
Roughing	SCMW 09T304E-KD5	0.4	0.10-0.22		0.40-4.8			190612E-SC3	1.2	0.23-0.66		1.20-6.3
	09T308E-KD5	0.8	0.20-0.44		0.80-4.8			SNMG 120404E-MC3	0.4	0.08-0.22		0.32-4.2
	120404E-KD5	0.4	0.10-0.22		0.40-6.4			120408E-MC3	0.8	0.15-0.44		0.64-4.2
	120408E-KD5	0.8	0.20-0.44		0.80-6.4			120412E-MC3	1.2	0.23-0.66		0.96-4.2
								150612E-MC3	1.2	0.23-0.66		0.96-5.2
	SCMT 380932-HT	3.2	0.70-1.40		4.0-18.0			150616E-MC3	1.6	0.30-0.88		1.28-5.2
								190612E-MC3	1.2	0.23-0.66		0.96-6.3
								190616E-MC3	1.6	0.30-0.88		1.28-6.3
Only some models are shown here. For more information, please contact customer service.
