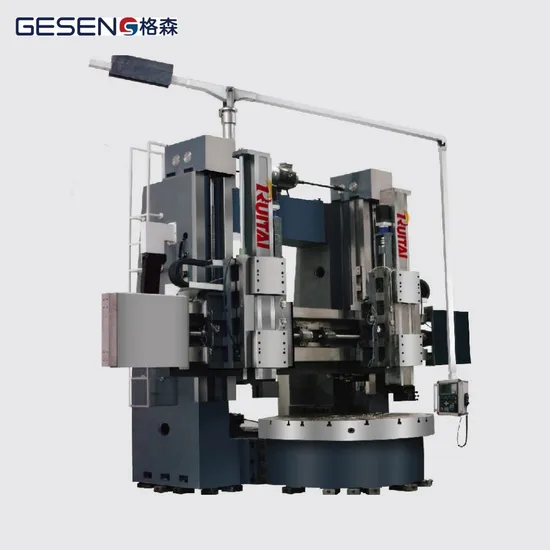

Heavy Duty Metal Cylinder Turning Machine Tool Double Column Manual Vertical Lathe

Product Description

DOUBLE COLUMN VERTICAL TURNING LATHE
PRODUCT FEATHRES---
VERTICAL LATHE CK52 SERIES

1. Ruitai double column vertical lath is suitable for machining procession in various industries made of well qualified raw materials . 2. Applied for processing of internal and external cylindrical surface, conical surface, end face, groove, arc surface and threads, etc. 2. Adopting16/4 main spindle speed so that table speeds range from 0.42-42r/min.
3. Equipped with constant current hydrostatic guide rail, to achieve high rotation precision and large bearing capacity.
4. Designed with servo motor, ball screw drive structure and sealing cover to make sure the safety of machine.
The two tool posts can choose CNC or DVT conventional system.


Back side Left and right motor Large diameter worktable

Parameters
Double column manual vertical lathe
No.	Items	Unit	C5225	C5231	C5240	C5250	C5255
1	Worktable diameter	mm	2250	2830	3200	4500	5500
2	Max. turning diameter	mm	2500	3150	4000	5000	5000
3	Max. turning height	mm	1600	1600	2000	2000	2500
4	Max. Weight of work piece	t	15	15	15	40	40
5	Worktable max. torque	Kn.m	63	63	63	100	100
6	Range of table speeds	r/min	2.5-63	2.5-63	2.0-50	0.2-40	1-40
7	Cutting force of tool post-right tool post	KN.m	40	40	40	50	50
8	Ram horizontal stroke	mm	1400	1650	2150	2700	2900
9	Ram vertical stroke	mm	1000	1000	1000	1250	1400
10	Tool bar size	mm	40x40	40x40	40x40	50x50	50x50
11	Main motor power	Kw	55	55	55	75	90
12	Beam motor power	Kw	7.5	7.5	11	15	15
13	Machine weight(about)	KG	35	41	47	74	77

CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/colorManual vertical lathe double column CNC vertical lathe double column
Manual double column vertical lathe CNC double column vertical lathe
CK5123 economic model CK5117CM turning and grinding model CK5116BD higher precision model
Kindly contact us to get your vertical lathe machine tool.

---
