Huawan OEM ODM High Voltage 3 Phase Dry Type Power Transformer for Industrial Use

Product Description

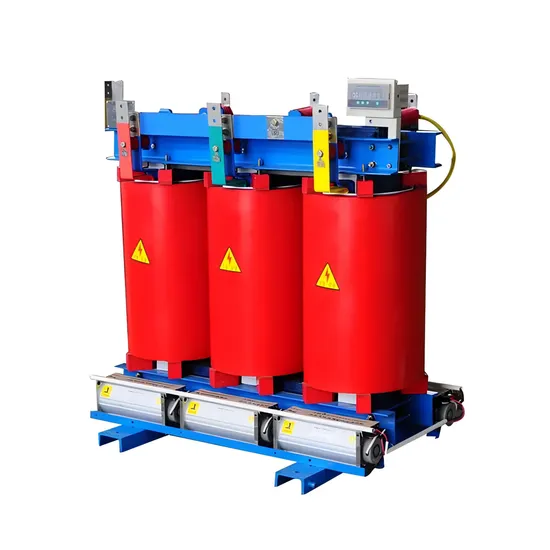

Product Description 3 Phase Dry Type Power Transformer
Product Specifications and Characteristics:
Safety and Fire Resistance: The product is designed to be inherently safe, non-flammable, and fireproof, posing no pollution risks. It can be seamlessly integrated within the load center without compromising safety standards. Maintenance-Free and Cost-Effective: Featuring a maintenance-free design, the installation process is straightforward, contributing to reduced overall operational costs. Excellent Moisture Resistance: Capable of operating normally even under 100% humidity conditions, the product boasts impressive moisture-proof performance. Efficient Energy Utilization: It exhibits low loss characteristics, minimal partial discharge, and operates quietly. The robust heat dissipation capacity, enhanced by forced air cooling, further enhances its efficiency. Advanced Temperature Protection and Control: Equipped with a sophisticated temperature protection and control system, the transformer operates safely and reliably, ensuring continuous and stable performance. High Reliability: The reliability index of these products has attained an internationally advanced level, guaranteeing dependable service. Customization Options: We offer tailored solutions, designing exclusive products according to specific customer requirements to meet diverse application needs. Product Parameters

rated capacity	Voltage combination and			Low pressure	open circuit losses	load loss	short circuit impedance	no-load current	boundary dimension	mounting dimension	Body weight
	decomposition range
(kVA)	High tension	Tapping range	Join group label	kV	(W)	(120ºC(W)	(%)	(%)	Length * width * height	(mm)	(kg)
30	6 6.5 10 10.5 11	±5% or ±2×2.5%	Yyn0 or Dyn11	0.4	170	710	4	1.8	580*45*650	300*380	300
50					240	1000	5	1.5	600*450*650	300*380	380
80					330	1380	4	12	880*500*800	450M50	470
100					360	1570	4	1	970*500*820	450M50	560
125					420	1850	4	1	970*500*860	450M50	650
160					480	2130	4	1	980*650*950	550*550	780
200					550	2530	4	0.8	1000a650*970	550*550	800
250					640	2760	4	0.8	1040*760*1110	660*660	1030
315					790	3470	4	0.7	1100*760*1110	660*600	1250
400					880	3990	4	0.7	1170*760*1235	660*820	1400
500					1040	4880	4	0.6	1190*760*1250	660*820	1600
630					1200	5880	4	0.6	1220*760" 1250	660*820	1900
630					1170	5960	6	0.6	1220*760*250	660-820	1900
800					1360	6960	6	0.5	1330*760*1330	660*820	2580
1000					1590	8130	6	0.5	1350*920*1450	820*820	2850
1250					1880	9690	6	5	1440*920*1550	820*820	3200
1600					2200	11730	6	0.5	1510*1170*1620	1070*1070	3800
2000					2740	14450	6	0.4	1530*1170*1785	1070*1070	4280
2500					3240	17170	6	0.4	1560*1170*1930	1070*1070	5250

Detailed Photos

Our Factory

Certifications
Packaging & Shipping
Our regular packaging: wooden boxes or customized support. We support multiple transportation methods, transportation costs, and the most suitable
transportation method for you. You can click here to contact us and help you check.
Company Profile Anhui Huawan New Energy Co.,Ltd. specializes in power equipment,focusing on the production,sale,and research of power transformers,substations,high- and low-voltage switchgear and other related electrical equipment.We hold certifications including ISO 9001,CE,3C,TUV,and the Green Power Certificate Trading Voucher.
Our team of over 200 professionals,including 10 senior engineers,65 Technical Workers,we offer more than 50 product series and over 600 specifications. Our annual production capacity exceeds 5,000 units,The company has obtained 158 national patents,nearly 100 product testing certifications,and over 30 software copyrights. Our financial assets surpass 15 million USD,and our annual output value approaches 56 million USD.
For many years,the company has been supplying high-quality complete systems of power transmission and distribution devices,as well as electrical control equipment,to various industries,including metallurgy,shipbuilding,electric power,mining,smart buildings,high-rise structures,hospitals,colleges,and universities. With strong technical expertise and advanced equipment,the company's products are well-regarded nationwide and receive positive feedback from users.

FAQ 1. Q:Are you a trading company or manufacturer?Are OEM and ODM available? A:We are a factory with more than 10 years experiences. 2.Q:Do you have a catalogue? Can you send me the catalogue to have a check of all
your products?
A:We have a product catalog. Please contact us online or via email to request a copy. 3. Q:What about the production?
A:In general,it take 25 working days for production and it depend on the different style. 4. Q:Do you have the products in stock? A:Depending on your request,we have standard models available.
5. Q:How can I pay you? A:Pay by T/T and L/C is acceptable.
6. Q:Can I get guarantee of products and How do you solve quality problems?
A:Every product comes with a 1 year quality warranty, provided the products are used
correctly by the customer.Please provide detailed photos of quality problems, Our
technical and quality testing department will analyse. We will make a satisfied solution
within 2 days.

---
