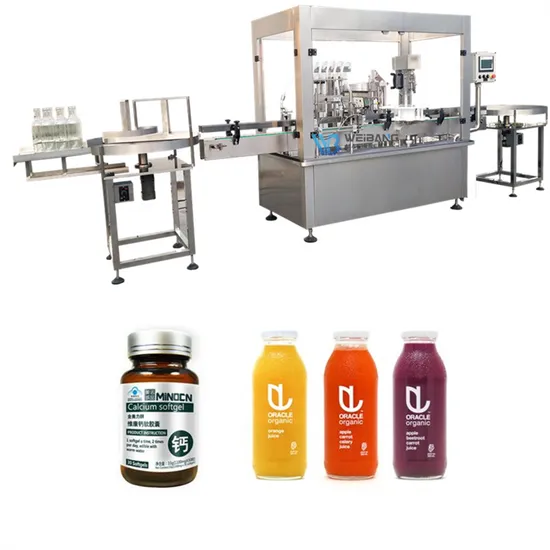

Automatic Juice Filling Machine Coconut Water Apple Juice Filling Machine

Product Description

Automatic liquid filling and capping machine
Model No. WB-YG4 / YG6 / YG8
Product Description
Machine name: WB-YG4 / WB-YG6 /WB-YG8 Automatic Liquid Filling and Capping Machine
Application:
This machine is mainly used for syrup, honey, juice, wine, drinks, cod liver oil, olive oil, essential oil, facial cleanser, shower gel, hair oil, ink, disinfectant, injection, laundry detergent and various medical liquid filling and capping.
Performance feature:
1.machine use plunger type metering pump filling(when the filling volume difference is large,the corresponding pump body needs to be replaced),high precision.2.The structure of pump adopts fast disassembled mechanism,easy to clean and disinfect.3.PLC control system ,color touch screen display,machine has function of counting automatically. 4.The filling nozzle was equipped with drop-proof device.5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent the generation of bubbles.6. Machine shell is made of 304 stainless steel,meets GMP standard.
Product Parameters

Customize nozzle number according to filling speed
Model	WB-YG4	WB-YG6	WB-YG8
Filing head number	4	6	8
Adding cap head	1	2	2
Capping head No.	1	2	2
Filling volume	50-1000ml	50-1000ml	50-1000ml
Capacity	5-35 bottles/min	10-60 bottles/min	15-70 bottles/min
Filling accuracy	≤ ±1%(depend on product)
Pass rate	≥ 98%
Power supply	1 Ph. AC220V/3Ph AC380V 50/60Hz
Total power	2.8 KW	3.0 KW	3.5KW
Net weight	About 850kg	About 1000 kg	About 1200 kg
Overall Dimension	L2100x W1800x H1900mm	L2200x W1800x H1900mm	L2300x W1800x H1900mm

Detailed Photos
Siemens PLC control + Touch screenServo motor controls piston pump filling
Filling part
Filling nozzle: The machine can be customized with 4/6/8/10/12 filling nozzles according to the filling speed requirements.
capping part
Customized according to cap. Ordinary round plastic cap /aluminum cap
Customize the machine according to the customer's products and requirements
Design the machine structure according to the customer's factory area
bottle feeder + bottle wahing machine+filling and capping machine + labeling machine+ shrink sleeve labeling machine +bottle collection table
Related machine
The machine is mainly used for electronic cigarete oil, eye drops, essential oil, nal polish, eye shadowand other products automatically filling, plugging in and screw capping.

Company introduction
Our service
1.Installation and debug:
After customer received machine and placed machine according to layout whichprovide by us, we will arrange technicaian for machine installation, debug and testproduction by two ways:(online teaching,on-site debugging).
2.Training:
We offer technology training to customers.The content of training is structure and maintenance ofmachine, control andoperation of machine. Our technician and salesman will guide and train customeronline, after training, customer's technician could master the operation andmaintenance well.
3.Quality guarantee:
We promise that our machines are all new and never used.Machines are made of suitable materials, adopts new design. Ouality and performanceall meet the requirements of contract.
4.After sale service:
We offer 12 months warranty and wearing parts for each machine, and offer other partsat the lowest price.After customer received machine, if meet any problem during debugor operation of machine, we will help customers online, if the problelms are still can notsolved. or customer need our technician go to their factory, we can arrange it.
FAQ
1: Q:Are you a factory or trading company ?
A: We are a professional manufacturer of Vertical packing machine,horizontal packing and bottle filling machines . At the same time , we are also a trustworthy supplier of other packing equipment ,including tea bag packing machine , wet wipes fold and packing machine , yogurt cup filling and sealing machine , Labeling machine, shrink sleeve labeling machine , box cartooning machine , metal detector, inkjet printing machine , mixing tank and hard candy packing machine and so on . 2, Q: Trade assurance order is OK?A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.3, Q: What is the MOQ ?A: 1 set . 4, Q: How long is the lead time ? A : All machine takes around 10-25 days after deposit payment .5, Q: What is your warranty and after-sale serviceA: One year warranty and Lifelong after-sale service via skype/whatsapp/mobile/etc .Also Technical service is available.6,Q:Can I Visit factory and send team for Learning and inspect?A:Yes, sure, Welcome your visit and no problem for your team come and learning, we will do our best to teaching they how to use the machine .7, Q: Which is the nearest sea port for you ? A : Our company located at Shanghai city ,so Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request . 8, Q: What advantages we have? A: Rich experience: We have over 20 years experience in exporting packing machine and bottle filling line , all of our sales have been in packing and filling industry over 20 years , some over 20 years . We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers' different requirement . We have our own factory , so that , no matter the packing machine and filling machines which manufactured by ourselves , but also other related machine we get from our partners . All will be re-tested again in our factory .Contact

---
