5kw Single Phase Solar Energy Solar Storage PV Inverter

Product Description

5kw Single Phase Solar Energy Solar Storage PV InverterProduct DescriptionPV:500V;AC:220/230VHF Series is new hybrid solar charge inverter, which integrates PV charge &Grid(Generator) charge with AC sine wave output.
Adopting DPS control algorithm, getting higher response speed, higher reliability and higher industrial standard.
1. It adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave. 2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply. 3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging. 4. Advanced MPPT technology with 99.9% efficiency. 5. User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage batteries. 6. Rocker switch for AC output control. 7. Power saving mode, reduce no-load loss. 8. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan. 9. Lithium battery activation function, allow lead-acid battery and lithium battery access. 10. All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection and reverse polarity protection. 11. Support variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN and USB etc., and feasible to connect with computer and mobile phone to realize remote control. 12. Available for 6 units parallel operation.
Product Parameters

Model	HFP4850S80-H
Battery Input
Battery type	Sealed,FLood,GEL,LFP,Ternary
Rated Battery Input Voltage	48V ( Minimum Startup Voltage 44V)
Hybrid Charging Maximum Charging Current	80A
Battery Voltage Range	40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning/Shutdown Voltage/ Overvoltage Warning/Overvoltage Recovery...)
Solar Input
Maximum PV Open-circuit Voltage	500Vdc
PV Working Voltage Range	120-500Vdc
MPPT Voltage Range	120-450Vdc
Maximum PV Input Current	22A
Maximum PV Input Power	5500W
Maximum PV Charging Current	80A
AC Input(generator/grid)
Mains Maximum Charging Current	60A
Rated Input Voltage	220/230Vac
Input Voltage Range	UPS Mains Mode:(170Vac~280Vac)±2% APL Generator Mode:(90Vac~280Vac)±2%
Frequency	50Hz/ 60Hz (Automatic Detection)
Mains Charging Efficiency	>95%
Switch Time (bypass and inverter)	10ms(Typical Value)
10ms(Typical Value)	40A
AC Output
Output Voltage Waveform	Pure Sine Wave
Rated Output Voltage (Vac)	230Vac (200/208/220/240Vac)
Rated Output Power (VA)	5000(4350/4500/4750/5000)
Rated Output Power(W)	5000(4350/4500/4750/5000)
Peak Power	10000VA
On-load Motor Capacity	4HP
Output Frequency Range(Hz)	50Hz±0.3Hz/60Hz±0.3Hz
Maximum Efficiency	>92%
No-load Loss	Non Energy-saving Mode: ≤50W Energy-saving Mode:≤25W (Manual Setup)
General
Number of parallel/split phases	1-6PCS
Certificate	CE(IEC62109-1)/CETL(UL 1741 C22.2 NO.107.1)
EMC Certification Level	EN61000, C2
Working Temperature Range	-10°C ~ 55°C
Storage Temperature Range	-25°C ~ 60°C
Humidity Range	5% to 95%(Conformal Coating Protection)
Dimensions	426mm*322mm*124mm
Weight (KG)	10.5

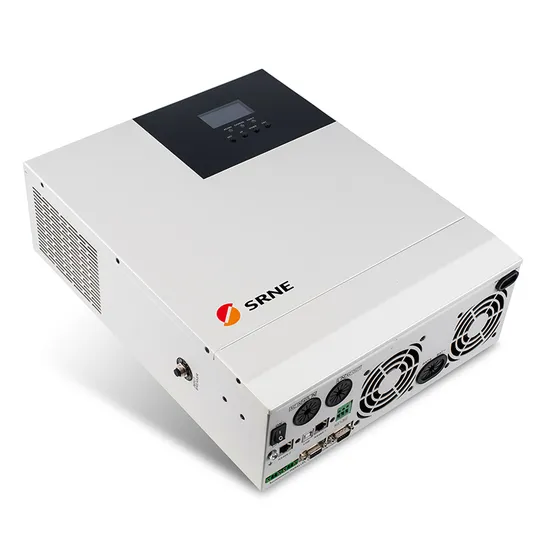

Detailed Photos
Installation Instructions
Certifications
FAQ
Q1: What kind of certificates you have for your solar controllers ?
SRNE: CE,ROHS,ISO9001 certificates approved.
Q2: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we have our own factory.
Q3: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.
Q4: How are about the delivery?
SRNE:Sample:1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order:4-8 working days after confirming the sample
Q5: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is below 0.1%.we do try our best to provide a good customer service.
Q6:Minimum Order Quantity?
SRNE:Be equal or greater than 1 piece.

---
