P2.6mm HD Stage Advertising Full Color Rental Panel Indoor LED Video Screen Wall for Rental Events

Product Description

P2.6mm HD Stage Advertising Full Color Rental Panel Indoor led video screen wall for DJ Booth
Product Description
500mm*500mm and 500mm*1000mm panel size for option, these two size can be joined together
Both indoor and outdoor for rear and front service maintenance
Die-casting aluminum material panel
Standard refresh1920Hz and high refresh 3840Hz
High-precision design to fullfill both modular front and rear access.
sidelocks each cabinet for better alignment
Invisiable cuveable locks, range from -10- +10 degrees
Four corners with protective design to prevent from any possible impact with ground during transportation / big screen setup/ dismantling.
Magnetic modules to make full front service
Modular locking system to guarantee no moves during transportation in road cases.
Inclination design at cabinet bottom for self-protection of LEDs, making cabinet stand on ground well.
Product Parameters

NO.	ITEM	PARAMETER
Modules	Model	X5plus
	Pixel Pitch (mm)	P2.6mm
	Physical Density (dots/m2)	147,456
	LED Configuration	1R1G1B
	LED Type	SMD1515
	Module Size(mm)	250x250
	Module Resolution (dots)	96X96
Screen	Drive Mode:	1/32
	Horizontal Viewing Angle(Deg)	160
	Vertical Viewing Angle(Deg)	160
	Brightness (cd/m2)	1,000
	Grey Scale(bits)	14~16
	Refresh Rate(Hz)	1920~3840
	Cabinet Resolution(dots)	192x192 / 192*384
	Max. Power Consumption(W/m2)	750
	Ave. Power Consumption(W/m2)	260
	Cabinet Size(mm)	500x500 / 500x1000
	Cabinet Thickness (mm)	88
	Cabinet Material	Die-casting Aluminum
	Input Voltage(V)	100~240V
	Protection Level	IP33
	Working Environment	Indoor
	Working Temperature(ºC)	-30~60
	Operation humidity(RH)	10%-90%
	Certificates	CCC, CE,RoHS

Detailed Photos


Packaging & Shipping

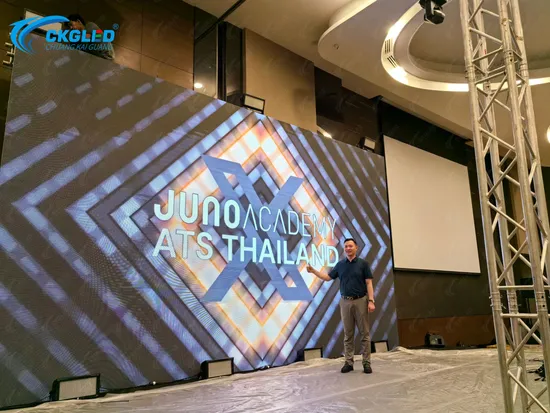

Project Case

Company Profile

Service
Pre-Sales Service
Provide details about the production procedure
Assign engineers for installation and testing

Sales Service
Customized solution designs
Product rendering and steel structure drawing
CKGLED's successful project examples and visits to our production and R&D base


After-Sales Service
Two-year quality warranty with lifelong maintenance.
Free guarantee repair (including labor and material): free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
Responding time: upon receiving user's notification, we ensure 24-hour after-sales technical support.
Spare parts: necessary spare parts are provided together with products to customers.
Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
Site instruction service of installation is available.
Free on-site service for hardware related issues.

FAQ
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It's very easy and convenient to control.
Q2: Can I have a sample order for led screen? A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service? 1: One to one sales engineer to customer responsibility system; 2. Know your project and provide the best solution for it; 3. Track your order and let you know each step and detail of it; 4. Teach you how to install and use the screen; 5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time? A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q6:How about your Warranty Term? A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don't worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.

---
