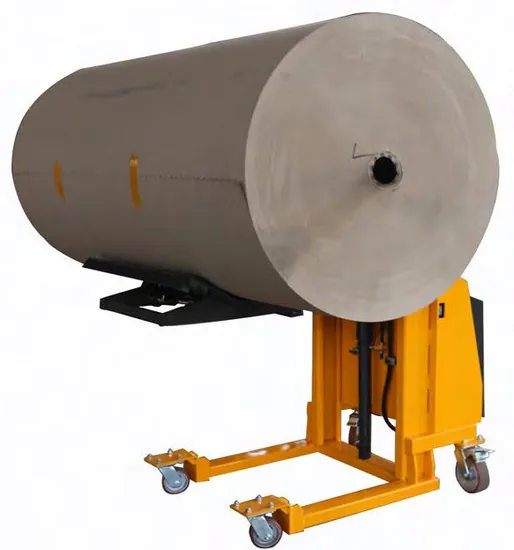

500kgs 1000kgs Semi-electric Roll Lifter Roll stacker Rell lifter

Product Description

• Capacity:1000Kg, 1500Kg.
• Lifting Height:865mm, 1500mm
• This series lifters are semi-electric type ,which means electric lift and manual move .
• This Roll Lifters are designed for handling large and heavy material rolls .
• Unique tray design with Electric Front Lip effectively protect rolls from rolling,
especially on uneven ground , this device is essential for safety .
• Structure made of high resistance steel rolled sections to ensure the highest
degree of strength and durability.
• Using this lifters, material damage is reduced or eliminated when moving rolls.
• Customiztion for various of rolls' sizes and lifting height are acceptable.

Model		ERL1000T	ERL1015T	ERL1500T	ERL1015T
Model		ERL1000TF	ERL1015TF	ERL1500TF	ERL1015TF
Type		Electric Lifting & Manual Moving
Capacity	(kg)	1000		1500
Lift Height	(mm)	865	1500	865	1500
Roll Tray Width	(mm)	700		1000
Max.Roll Width	(mm)	1550		1700
Max.Roll Diameter	(mm)	800		1000
Lifting Motor	kw	1.6
Battery	Ah/V	120/12
Charger	A/V	15/12
Front Roller	mm	100X50
Rear Roller	mm	150X50
Net Weight	(kg)	298	320	358	380

---
