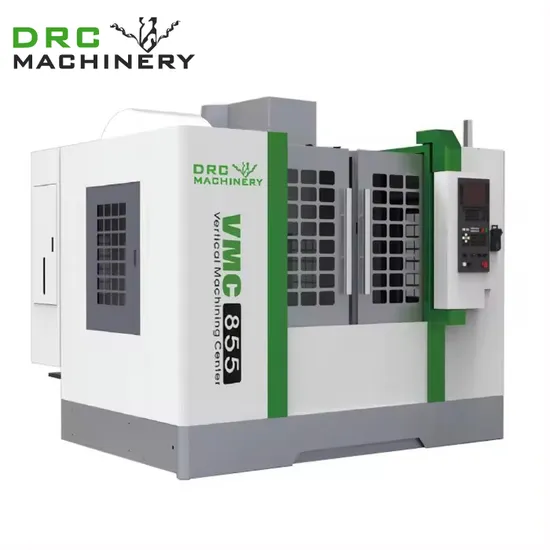

China Professional Manufacture Vmc855 Vmc850 CNC Machining Center 4 Axis Machining Center

US$25,799.00
1-19 Sets
US$25,699.00
20+ Sets

Basic Info.

Model NO.
vmc855
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
X /Y/Z Axis Travel
800/500/500mm
Spindle Nose to Table Surface
120-620mm
X/Y/Z Axis AC Servo Motor
Torque N.M 15/15/22
Spindle Center to Column Surface
550mm
Table Size
1000×550mm
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 2800*2360*2450mm
Trademark
DRC
Origin
China
Production Capacity
500

Product Description

4 axis 5 axis metal cnc milling machine for metal
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Specification Unit VMC855 VMC1055
Processing range
X axis travel mm 800 1000
Yaxis travel mm 550 550
Zaxis travel mm 550 550
Spindle face to table distance mm 120-670 120-670
Distance between spindle center
and column guide surface mm 613 613
Worktable parameters
Worktable size (X) mm 1000 1000
Worktable size (Y) mm 550 550
Maximum load bearing of worktable kg 550 550
Spindle parameters
Spindle speed rpm 10000/12000 10000/12000
Feeding parameters
X/Y/Z axis rapid movement rate m/min 36/36/36 36/36/36
Feed moving velocity X,Y,Z mm/min 1-10000 1-10000
Servo motor specification kw 3*3*3 3*3*3
ATC paremeters
ATC capacity pcs Knife wall type 24 Knife wall type 24
Machine size
Length of machine mm 2400 2400
Width of machine mm 2050 2050
Height of machine mm 2250 2250
Weight of machine kg 4060 4060
