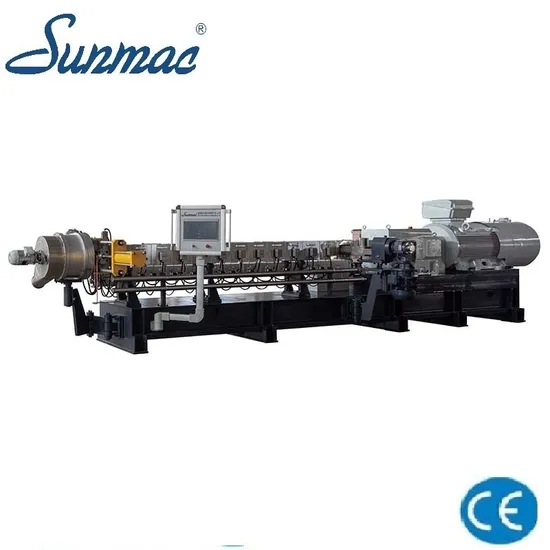

High Filling Modified Twin Screw Extruder / Double Screw PE PP+CaCO3 Filler Masterbatch Extruder Machine

Product Description

Product Parameters

Model	Diameter (mm)	L/D	Screw speed (rpm)	Motor Power (KW)	Torque per shaft (N·m)	Specific torque T/A3	Capacity (kg/hr)
SM26plus	26.5	24~68	900	22	117	11.8	10~90
SM36plus	36.1	24~68	900	55	292	11.8	90~270
SM42plus	41.5	24~68	900	90	478	11.8	180~450
SM52plus	51.8	24~68	900	185	982	11.8	360~900
SM63plus	62.6	24~68	900	315	1671	11.8	600~1700
SM73plus	72.2	24~68	900	500	2653	11.8	2000~5000
SM96plus	93.8	24~68	900	1000	5306	11.8	3400~8500
SM135plus	132	24~68	900	1700	9019	11.8	3400~8500

Applications
1.Advantages in Traditional Filler Masterbatch
Based on new design, output can reach more than 3 tons per hour, air cooling, water ring or under water system is optional.
Typical formulation
PE, PP, EVA, etc. + Calcium carbonate, talc powder, titanium powder;
ABS, PC; PS, etc. + aluminum hydroxide, magnesium hydroxide, antimony oxide;
PP, PA, ABS+ ferrous powder, sulphuric powder, ceramic powder.
2.High performance filler masterbatch and modification
Adopting the multi-feeding method with high speed side force feeder, suitable for high-class filer masterbatch with low additive formula.
Typical formulation
PE, PP, etc. + calcium carbonate, talc powder + less additives
3.Application advantage of biodegradable masterbatch
Adapted to the physical characteristics of degradable material, air cooling or water cooling pelletizing system is available.
Typical formulation
PLA, PBAT etc. + CaCO3 powder, talc powder, etc.
4.Advantages in additives masterbatch
Precisely control the material flow state in the machine, anti-block masterbatch, slip masterbatch, antistatic masterbatch, etc.
Typical formulation
PP, PA, ABS, PBT, etc. + anti-burning agent and other additives; anti-flaming masterbatch;
PE, PP, PS, etc. + starch; degradable masterbatch
PE + fog-preventing dipper, stabilizer, UV masterbatch
PET, PP, PE, anti-block masterbatch, slip masterbatch, antistatic masterbatch.
5.Advantages in color masterbatch
Based on new solution, obviously improve dispersion.
Typical formulation
PE, PP, ABS, AS, PA, EVA, PET + pigment and auxiliary
6.Advantages in plastic alloy and engineering plastics modification
Suitable for a variety of formula, accurate ratio, excellent mixing effect.
Stable performance, adapt to the high quality, high capacity production requirements.
Typical formulation
PE, PP, PS + SBS; PA + EPDM; PP + NBR; EVA + Silicon rubber, etc.:
PE, PA, PC, CPE + ABS (alloy); ABS + TPU; PBT + PET; PP+PE, etc.
chopped glass fibres, carbon fibres, crystals and so on, etc.
EVA heat-melting glue, polyurethane, fluorin rubber, fluorine plastics, PP cigarette filtering material and TPR sole material.
7.Advantages in cable material
Adapt to a variety of formulations, stable product quality, high capacity, low energy consumption.
Typical formulation
HDPE, LDPE, LLDPE, MDPE, EVA, PVC, PP, etc. Insulating cables, coatings; PE peroxide, silicon cross-linking cables; radialization cross-linking cables.
Company Profile
Model Applications
Certifications
Packaging & Shipping
Exhibitions
FAQ
1.Q:Are you a factory or trading company?
We are manufacturer with 20 years experience.
2.Q: What makes you different from other suppliers?
We are willing to introduce products in details, recommend suitable solutions, offering test for new formulation, testing expense is free.
Providing layout and engineering conditions, offering screw plan and related documents, inform the project processing status.
Insuring the product designed in accordance with technical document.
Providing installation, commissioning and training, offering spare parts.
3.Q:How long is the deliver time?
Normally, 45 days from the date we receive your deposit.
4.Q:How long is your machine's guarantee time?
One year, Main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance.
5. Q:What can you provide for after sale service?
A:We can send engineers to your factory for installation and training .

---
