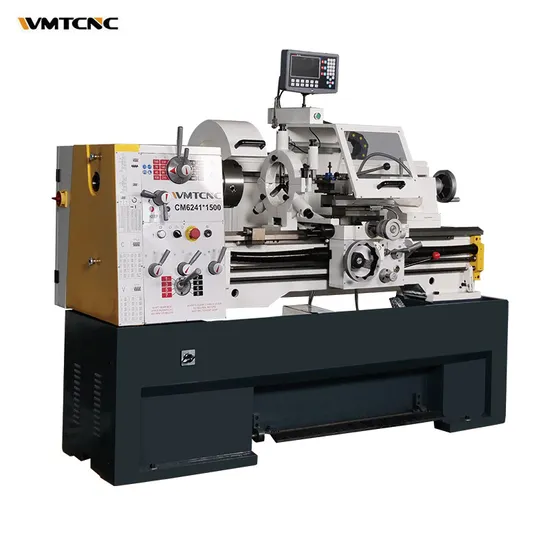

WMTCNC 52mm spindle bore 1000mm 1500mm CM6241 manual engine lathe machine

Product Description

Product Description
WMTCNC 52mm spindle bore 1000mm 1500mm CM6241 manual engine lathe machine main features:
1. High rigidity and accuracy for spindle system.2. Main drive design optimized and the gears in the headstock precisely ground in order to get low noise.
3. Precision ground and supersonic frequency hardened bed ways with designed in double wall structure, giving super rigidity.
4. Thanks to safe and reliable pedal braking device providing quick and effective stop while operating, automatic stopping device is used to realize. automatic stop for the machine of a certain length workpiece.Specification:

Specification	CM6241
Distance between centers	1000/1500mm
Max. swing over bed	410mm
Max. swing over cross slide	255mm
Max. swing in gap	580mm
Width of bed	250mm
Spindle
Spindle speed range	16 steps 45-1800rpm
Spindle bore	52mm
Spindle nose	D6
Spindle taper	MT6
Center height	205mm
Thread cutting
Threads metric pitches	0.2-14mm/42 kinds
Threads imperial pitches	2-72T.P.I/45 kinds
Threads diametral pitches	8-44D.P./21 kinds
Threads module pitches	0.3-3.5M.P./18 kinds
Range of feeds
Compound rest travel	140mmm
Cross slide travel	210mm
Longitudinal feeds range	0.05-1.7mm/rev
Cross feeds range	0.029-1.019mm/rev
Tailstock Sleeve
External Dia.	50mm
Max. travel	120mm
Taper of bore	MT4
Motor
Spindle motor power	2.2/3.3kw 3PH
Cooolant pump power	120w
Others
Tool section	20×20mm
Packing dimension	2070/2575×926×1635mm
Net/Gross weight	1350/1550kgs 1550/1800kgs

Detailed Images
High Configuration:
200mm 3-jaw chuck
250mm 4- jaw chuck
350mm Face plate
Steady rest
Follow rest
Chasing dial indicator
LED work lamp
Coolant system
Foot brake
Full-length splash guard
Chuck guard Leadscrew guard
Movable toolpost guard
European type quick change toolpost
3-axis Digital readout
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes, we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
