Basic Info.
Housing Material
Die-cast Aluminum
Certification
CE, EMC, RoHS
Product Description

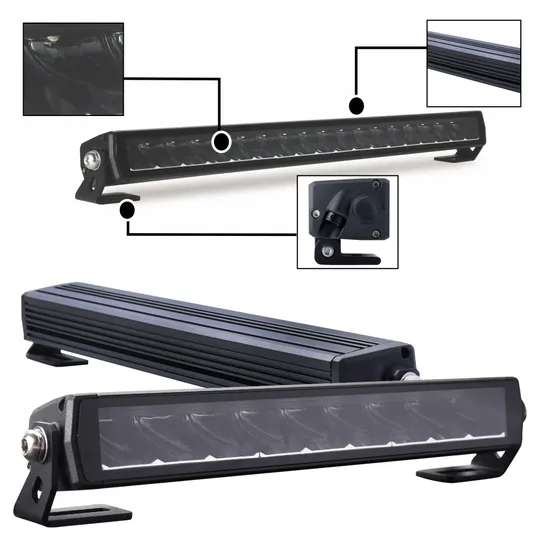

Product Description Ultra slim driving light bar series-BL3605SR3 Strong and super power, while with slim body for installation, please don't miss this LED light. When you mount this light into your off-roads, it will take you across mountains and rerivers without any light barrier. Features *Housing: 6063 extruded Aluminum Heat-Sink *Integrated ETM Technology ( Electric thermal managment ) *Optic systemreflector facing technology (light transmittance>95%) *Deutsch Connector available *IP Rate:IP68&IP69K Waterproof *Life Time:50,000+ Hours life span *Deutsch Connector available *Approved by ECE R112/R10 BL3605SR3 *180W Ultra Slim Light Bar *Input voltage:9-36V DC *Light length size: 1006*40.5*52.5mm (30 inch) *LEDs: 36pcs* 5W LEDs *Raw lumens: 16300Lm/ effective Lumens 13900Lm *Available beam: Spot beam/Combo beam *Light intensity:1Lux@648m *Approved by ECE R10
| Input Voltage | 9-36V DC |
| Wattage | 180W |
| Color Temp. | 6500K |
| Raw Lumens | 16300lm |
| Beam pattern | Spot beam/Combo beam |
| Intensity | 1 lux @648m/630m |
| Reference No. | / |
| Available size | 10inch/14inch/20inch/30inch/40inch |
| Dimension | 40inch (1006*40.5*52.5mm) |
| IP Rating | Comply with IP68, IP69K |
| Optic system | Side Reflector |
| LED | 36pcs*5W LEDs |
| Connector | DT2 |
| Life Span | 50,000+ hours |
| Other Spec. | Integrated ETM Technology to extend life span |
| Certification | ECE R10 / CE / RoHS |
Beam Pattern Application Product packaging More About BRT FAQ
>>
