Retech Automatic Liquid Pure Mineral Water Fruit Juice Carbonated Soft Drink Processing Bottling Machine Pet/Glass Bottle Washing Recycling Machine

Product Description

Retech Automatic Liquid Pure Mineral Water Fruit Juice Carbonated Soft Drink Processing Bottling Machine Pet/Glass Bottle Washing Recycling Machine


Product Description
Description of Retech PET HDPE Washing Recycling Machine:

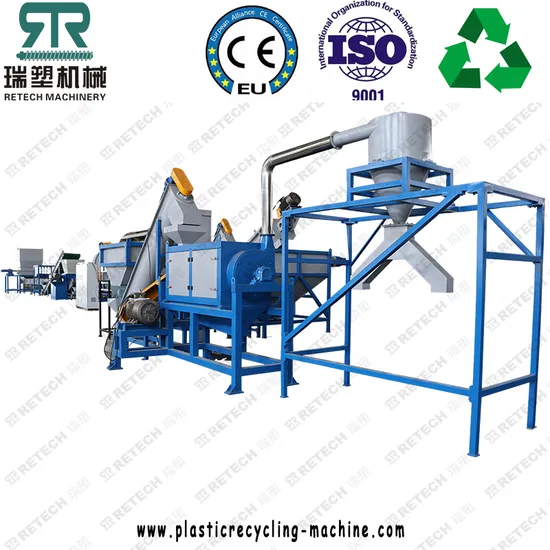

Retech Plastic PET bottle washing recycling line is used to recycle post-consumer PET bottles, water bottles, cola bottles, PET sheet and PET packing containers.
The key point of PET recycling system is the rate of removing the impurities.The higher purity PET flakes will improve the end product and lower the manufacturing cost of next processing.We could design different PET recycling solutions basis on the requirement of standards on final flakes.
Purpose and equipment composition:
This production line is specially used for crushing, cleaning, dewatering and drying all kinds of waste plastics. The whole production line is mainly composed of the following equipment: belt conveyor, crusher, friction cleaning machine, film rinsing machine, screw feeding machine, heat cleaning machine, screw feeder, dehydrator, drying system, electrical and so on. The equipment is simple, practical and high yield, which is the most effective production line for recycling waste plastics.
Application for PET washing line:
This recycling line is composed of garbage separation (automatic & manual), bottle & flake crushing, cold & hot washing & cleaning, flake dewatering & drying, dust & label removal, packing, etc.
Condition of final PET flake for PET washing line:
Moisture: Not more than 1.0%
PVC Content: Not more than 200ppm
Metal Content: Not more than 20ppm
Label, ring and caps Content (i. e. PE, PP): Not more than 240ppm
Total amount: Not more than 560ppm Main Fetures

Features for PET washing Recycling line:
1. The material is mainly PET bottles, including water bottles, cola bottles…2. The main parts of the PET washing recycling plant is label separating, crushing, cold and hot washing, caps separating, dehydrator and drying parts. 3. The capacity of the PET washing recycling plant is from 300kg/h to 3000kg/h.4. There crusher is to crush the rigid material into small pieces with size from 1mm to 15mm depending on customers' need.5. Mechanical label separator and zigzag label separator can ensure to remove the labels thoroughly.6. Sinking swimming tank can not only remove dirties of the flakes, but also can remove the caps out.7. High speed friction washer and hot sinking swimming tank can remove the strong dirties, like the grease, oil, glue.8. By dehydrator and drying system, the final products plastic flakes moisture level can be lower than 1%.9. The final products PET flakes, the PVC level is lower than 150PPM, the impurities level is lower than 100PPM.10. The PET flakes can be taken directly to make the fibers, straps, and also can be granulated to be granules.

Detailed Photos

No.	Name	Motor Power	Dimension	Weight	Necessity
1	Belt conveyer	1.5~2.2kw	4000*700*3000mm	450kg	Necessary
2	Mechanical label separator	18.5~22kw	3200*1200*2500mm	4000kg	Necessary
3	Manual sorting	1.5~3.7kw	6000*1000*1200mm	600kg	Optional
4	Metal detector	0.4kw	2000*1300*1600mm	350kg	Optional
5	Belt conveyer	1.5~2.2kw	4000*700*3000mm	450kg	Necessary
6	Wet crusher	22~90kw	1700*1600*3200mm	3500kg	Necessary
7	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
8	Cold rinsing washer	3~5.5kw	5500*1900*2200mm	2300kg	Necessary
9	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
10	Hot washer	3~7.5kw	1800*1800*2100mm	2500kg	Necessary
11	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
12	High speed friction washer	22kw~37kw	3000*900*1700mm	2700kg	Optional
13	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
14	Cold rinsing washer	3~5.5kw	5500*1900*2200mm	2300kg	Necessary
15	Screw conveyer	2.2~3.7kw	3300*450*2700mm	400kg	Necessary
16	Vertical dewatering machine	45~55kw/	1800*1800*2000mm	2200kg	Alternative
17	Drying system	22kw~30kw	3000*2200*1800mm	420kg	Optional
18	Air label separator	3kw~7.5kw	1800*1000*3600	900kg	Optional
19	Storage silo	---	1600*1600*3800mm	380kg	Necessary
20	Electric panel	Customized	3000*600*1500mm	170kg	Necessary

Product Parameters

Capacity	1000kg/h	2000 kg/h	3000 kg/h
Workshop(M*M*M)	42 (L)×10(W)×6(H)	55(L)×15(W)×6(H)	70(L)×18(W)×6(H)
Ancillary staff	4-6Persons	6-8 Persons	8-12 Persons
Installation power	300KW	400KW	450KW
Water Consumption:	6-8Ton/h	8-10Ton/h	10-15 Ton/h
Final product	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm

Certifications

Service
1. We not only provide machines but also offer technical guide and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.
