Ruihang Film Foil Thermoforming Packing Pet Sheet Pet Plate Extrusion Line Plastic Extruder Machine

Product Description

Ruihang Pet Sheet Extrusion Line
Main features of the production line:
It has the advantages of green environmental protection and low energy consumption, simple process, convenient operation, compact structure, superior performance, uniform plasticization, stable extrusion, and good quality control.
Features and applications of the products produced:
1. Easy to process;
2. Degradable;
3. High transparency;
4. No water marks;
5. Excellent thermoplastic properties;
6. Safe and reliable hygienic properties, can be used for packaging of food, medicines and medical devices
Applications PET transparent light sheets are mainly used for blister, folding boxes, printing, windows, panels, advertising consumables, and are widely used in food packaging, toy gift packaging, hardware tool packaging, advertising printing packaging, electronic product packaging, clothing templates, tags, etc.
Working Process :
→Mixer(optional)
→Co-rotating Parallel twin screw extruder or Single screw extruder
→Metering pump and screen changer
→Mold
→Threeroller calender
→Temperature Control
→Cooling bracket
→Dual surface coating and oven(optional)
→Haul-off machine
→Double station winder
Main technical parameters:

Machine Model	RH-JC75	RH-JC85
Extruder	Φ75 Parallel Twin Screw	Φ85 Parallel Twin Screw
Product Width(mm)	800-1000	800-1500
Product Thickness(mm)	0.12-1.6	0.12-1.6
Production Capacity(kg/h)	350-500	400-600
Installed Capacity(KW)	295	365
Dimensions(m)	20*6*6	22*6*6
Machine Weight(t)	15	20

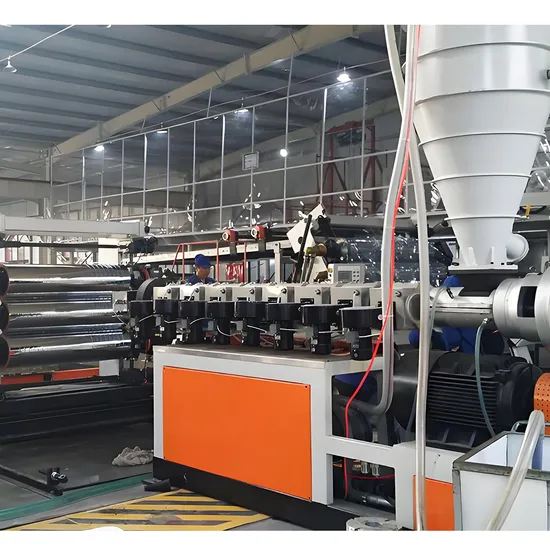

Production Line Display :
Product Display :

---
