North America Region/Operator 1.2Gbps/150Mbps LTE Cat.18 Module 4G LTE-A EG18-NA EG18NA EG18

Product Description

Product Description

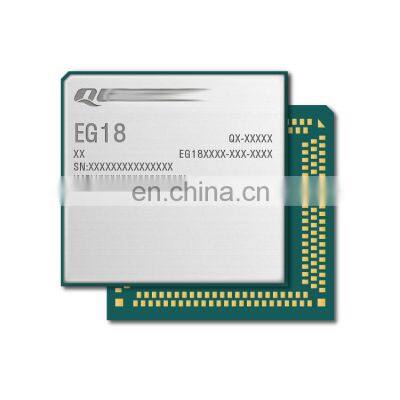

DescriptionOverviewThe EG18 is a series of LTE Cat 18 IoT modules in an LGA form factor measuring 39.5mm x 37mm x 2.8mm, which meets the 3GPP Release 12 standard. The EG18 is compatible with Quctel’s Cat 6 and 12 modules EG06 and EG12, to enable ease of migration between different categories. The series consists of two variants to meet various geographical demands, which can be compared via the table above.Delivering maximum downlink rates of 1.2Gbps and uplink rates of 150Mbps under LTE, the EG18 supports a range of applications that require fast and reliable transmission of large amounts of data, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, and Linux) allow the module to serve a wide range of IoT applications with demanding data transmission requirements.Key FeaturesCompatible with Quctel’s Cat 6 and 12 modules EG06 and EG12Supports DL 5x carrier aggregationSupports 256QAMSupports 4x4 MIMOSupports DFOTASupports DTMFEG18-EAEG18-NAREGION / OPERATOREMEA/APAC①/BrazilNorth AmericaFREQUENCY BANDSLTE-FDDB1/ B3/ B5/ B7/ B8/ B20/ B282/ B4/ B5/ B7/ B12/ B13/ B14/ B17②/ B25/ B26/ B29③/ B30/ B66/ B71LTE-TDDB38/B40/B41B41WCDMAB1/ B3/ B5/ B8B2/ B4/ B5GNSSGPS/ GLONASS/ BeiDou (Compass)/ Galileo/ QZSSGPS/ GLONASS/ BeiDou (Compass)/ Galileo/ QZSSDATA TRANSMISSIONLTE-FDD1.2Gbps (DL)/ 150Mbps (UL)1.2Gbps (DL)/ 150Mbps (UL)LTE-TDD545Mbps (DL)/ 90.6Mbps (UL)545Mbps (DL)/ 90.6Mbps (UL)DC-HSPA+42Mbps (DL)/ 11.5Mbps (UL)42Mbps (DL)/ 11.5Mbps (UL)WCDMA384Kbps (DL)/ 384Kbps (UL)384Kbps (DL)/ 384Kbps (UL)CERTIFICATIONSCARRIERAustralia: TelstraAmerica: Verizon*/ AT&T*/T-Mobile*/ U.S. Cellular*REGULATORYGlobal: GCFEurope: CEAustralia & New Zealand: RCMGlobal: GCFNorth America: PTCRBAmerica: FCCCanada: ICOTHERSRoHS/ WHQLRoHS/ WHQLEG18-EAEG18-NAWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC

---
