US$3,687.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, ISO 9001
Max. Grinding Length
500mm
Max. Grinding Width
190mm
Distance From Table Surface to Spind
335mm
Transport Package
Carton or Wood Case
Production Capacity
100sets/Month
Product Description

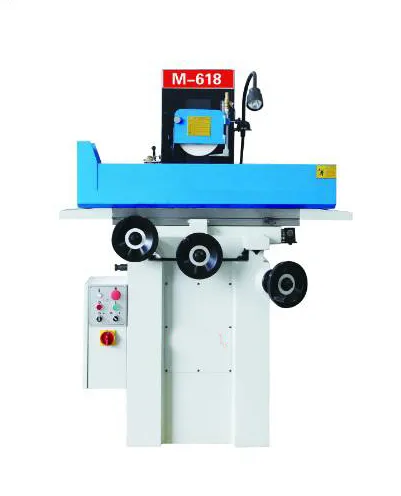

Characteristics of machine tools
Spindle adopts ultra precision P4 ball bearing, after measuring pre strict pressure, assembled in the greenhouse, and equipped with a completely waterproof mazy design , in order to ensure the service life and the grinding of bearing surface roughness .Which marching with ball screw.
It has the advantages of compact structure, easy to operate.
A longitudinal guide rail worktable adopts rolling guide, rope wheel traction, light and flexible
| Technical Parameters | Unit | M 618 |
| Table maximum cutting area (L × W×H) | mm | 500×190×335 |
| Working table movement | Max. Grinding Length | mm | 500 |
| Max. Grinding width | mm | 190 |
| Distance From Table Surface To Spindle Center | mm | 335 |
| Slide way | | V-type rail with Steel-ball V |
| Maximum work load | Kg | 200 |
| Table size | mm | 460×180 |
| Number of T -Slot T | mm×n | 14×1 |
| Number of T -Slot T | m/min | 3 23 |
| Front and rear wheel feed | mm | 0.02/Graduation2.5/revolution 0.02/ 2.5/ |
| On the hand wheel feed | mm | 0.01/Graduation1.25/revolution 0.01/1.25/ |
| Wheel Size(dia×width×bore) (×× ) | mm | 180×13×31.75 |
| Spindle speed | 50Hz | rpm | 2850 |
| Variable frequency motor (matching) () | 0-6000 |
| Spindle motor | Kw | 1.1 |
| Cooling pump | Kw | 0.4 |
| Packing Size (L×W×H) (××) | mm | 1240×1080×1680 |
| Cross,Net , | T | O.75, 0.65 |
>>
