Plastic Film Blowing Machine Polyethylene High Density HDPE Blown Film Extruder

Product Description

film blowing machine manufacturing machine

Model number: MD-HL ( Elevator Rotary head Pe Film Blowing Machine )



Product of polyethylene film extruder: HDPE/LDPE/LLDPE film



Application of polyethylene film extruder:

- T-shirt bags - Garbage bags

- Furniture cover films - Laundry bags



Material of polyethylene film extruder:

- Recycled material - LDPE/LLDPE blend

- HDPE with CaCO3 - Biodegradable or virgin raw material

USE:

1.Material: LDPE. HDPE. LLDPE, which are widely used for packing liquid, printed base material, products for export and industrial products.

2. double layer co-extrusion laminated film can prolong the length for preservation of liquid package.

3. the cylinder and screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.

4. the auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.

5. double rolling and double cutting with torque motor to keep proper tensions and make rolling even and roll changing easy.

6. Optional equipment

Double winder

Rotary die head

Auto loader

Double lip air ring

Air shaft

Corona treatment

Fast screen changer

Air compressor

All roller pneumatic type



Product Description

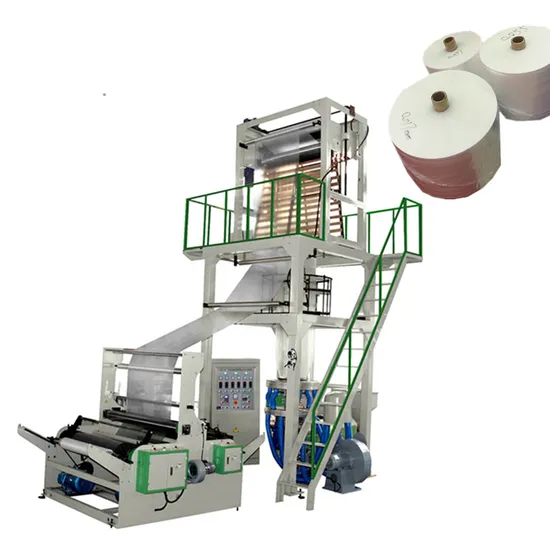

MD-HL series elevator Rotary PE film blowing machine
Main Technical Parameters
Model	MD-HL50	MD-HL55	MD-HL60	MD-HL65
Suitable Material	LDPE LLDPE HDPE
Max Film Width(mm)	600	800	1000	1200
Film Thickness(mm)	LD:0.02-0.15 HD:0.02-0.15
Max Extrusion Output HD LD	40kg/hr 50kg/hr	50kg/hr 60kr/hr	60kg/hr 70kg/hr	80kg/hr 100kg/hr
Extrusion unit
Gear Box	146	173	173	200
Screw Diameter(mm)	φ50	φ55	φ60	φ65
Screw L/D Ratio	28:1
Screw's Material	38 CRMOALA
Barrel's Material	38 CRMOALA
Barrel's Cooling Fan	250W×2	370×2	370×2	370*2
Thermo Control (zone)	3	3	3	4
Driving Motor (kw)	11	18.5	22	30
Extrusion Die
Die Size (mm)HD LD	HD:φ60 LD: φ150	HD:φ80 LD: φ180	HD:φ100 LD: φ220	HD:φ120 LD: φ250
Rotary Die Head	360°Continue Rotary
Thermo Control (zone)	2	2	2	2
Air Ring	1PCS
Cooling Blower (kw)	1.5	2.2	2.2	3
Take-UP Unit
Roller Width (mm)	φ138*650	φ138*850	φ138*1100	φ138*1300
Take-UP Motor (kw)	0.75	1.1	1.1	1.5
Take-UP Speed(M/min)	10-60	10-60	10-60	10-60
Winding Unit
Type OF Winder	Surface Friction Double Winders
Roller Width (mm)	700	900	1100	1300
Winding Motor	16N.M	10N.M	10N.M	16N.M
Winding Speed(M/min)	10-60	10-60	10-60	10-60
Voltage	380V 50Hz 3PHASE
Cover Dimensions (m)	4.5*2.0*4.3	4.5*2.2*4.5	5*2.5*4.8	5.5*2.8*5.2
price
OPTIONAL EQUIPMENT
1)AUTO LOADER×2PCS
2)AIR COOLING DEVICE
3)CORONA
4)MANUAL MECHANICS SCREEN CHANGER×2
5)FULL AUTOMATIC WINDER
6)Embossing Roller

our products


Packaging & Shipping

Our Services








1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your film blowing equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
In one words,your satisfication is our persuit forever!


Company Information

Ruian Mingde Machine Co.,Ltd,is a professional manufacturer ,specialized in the making of plastic bag making machine , film blowing machine,printing machine ,plastic recycling machine and so on. And our machine is all in good quality and the price is very competitive in China.


Advantages
1. ISO 9001: 2000, GSG, SGS, CE, Production Assessment, Gold Supplier certificated
2. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine experience)
3. Perfect after-sale system: We have more than 5 experienced technicians work abroad.
4. Yearly Production Capacity -- 200-300 sets
5. Prompt Reply Within 12 Hours

---
