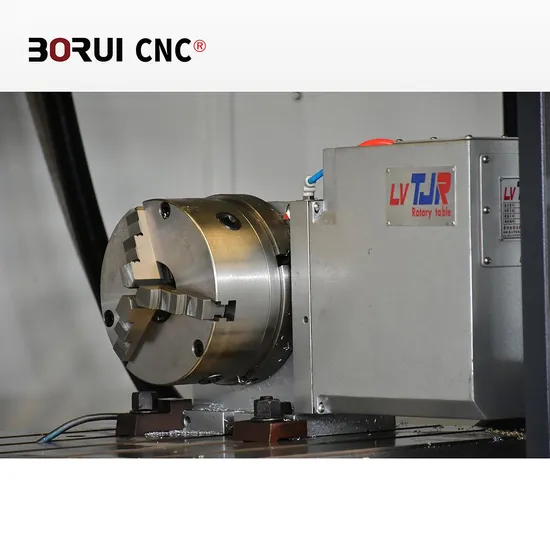

Efficient Milling Vertical CNC 4-Axis Machining Center Vmc1160 CNC Vertical Machining Center

Product Description

Efficient milling vertical cnc 4-axis machining center VMC1160 cnc vertical machining center Product Description
1.The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
2. Linear Guide Rail X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail,may satisfy the customer the speed, the precision high request.3 .Taiwan-made spindle Unit,8000-12000rpm available4. Taiwan OKADA 24 ATC 5.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc850 vertical machining center is suitable for producing metal product and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Product Parameters

Specifications	Units	VMC1160
Table size	mm	1200x600
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Max. worktable load	kg	850
T slot(number-width-pitch)		5-18x100
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT40/150
Main motor power	kw	11
X/Y/Z rapid traverse speed	m/min	48/48/36
Cutting feed speed	mm/min	1-8000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	650
Distance between spindle nose and worktable surface	mm	120-720
Positioning accuracy	mm	±0.01
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24
Max.tool weight	kg	15
Machine weight	kg	6800
Overall dimension	mm	3260*2450*2700mm

The main machine tool parts

Serial number	Name	model	Origin	Quantity
1	Spindle unit	BT40	Taiwan posn	1
2	Pressed cylinder		Taiwan Haocheng	1
3	ATC	24	Taiwan okada	1
4	X Ball Screws		Taiwan Hiwin	1
5	y Ball Screws		Taiwan Hiwin	1
6	Z Ball Screws		Taiwan Hiwin	1
7	guide	X, Y,Z all is linear way	Taiwan Hiwin	3
8	Cooling the pump	PMY-25-5	china	1
9	Lubrication system	Single wire damping	Taiwan Hurun	1
10	Pneumatic system		Taiwan Airtac	1

Detailed Photos
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
Our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
