Product Description

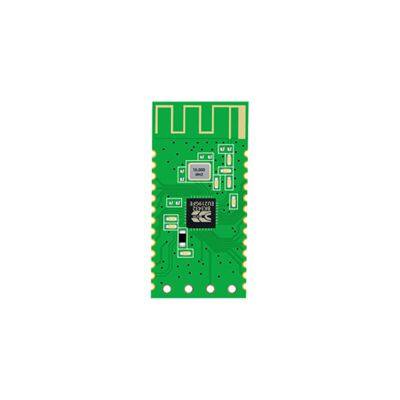

The TS-M1032D is a compact low-power BLE (Bluetooth Low Energy) Bluetooth module featuring a Bluetooth 5.0 chip and support for the BLE 4.2 protocol. It supports both BLE and SPP (Serial Port Profile) dual-mode protocols and is compatible with AT commands, allowing users to modify parameters such as serial port baud rates and device names using the provided AT instructions. Additionally, the module’s I/O ports can be directly controlled via an app by sending data, offering flexible and straightforward operation. This module is praised for its excellent stability, ultra-low cost, minimal power consumption, and high reception sensitivity, making it adaptable to a variety of customer development projects.
Model No.: TS-M1032D
Features
Bluetooth Version: BLE 4.2+SPP 3.0
Frequency Band: 2.402GHz-2.480GHz ISM band
TX Power: -20dBm~+4dBm
Receive Sensitivity: -96dBm
Air Rate: 250Kbps/1Mbps/2Mbps
Antenna: PCB Onboard
Advise Range: 80m
Memory: 160KB FLASH+20KB RAM
Size: 26.7*13*1.5mm
Pin/GPIO: 30/22
Power Supply: 1.8~3.6V
Operating Temperature: -40℃~+85℃
Peripheral Interface: UART/SPI/I2C/ADC
Serial Transparent Transmission Rate: BLE 4KB/s, SPP 16KB/s
Applications
Intelligent educational equipment
Measurement and monitoring system
Industrial sensors and controls
Bluetooth wireless data transmission
Medical equipment monitoring and wireless control
Building automation, security, computer room equipment wireless monitoring, access control system
>>
