CNC Grinder End Face Internal and Cylindrical Compound Grinding Machine for Studer Processing

Product Description

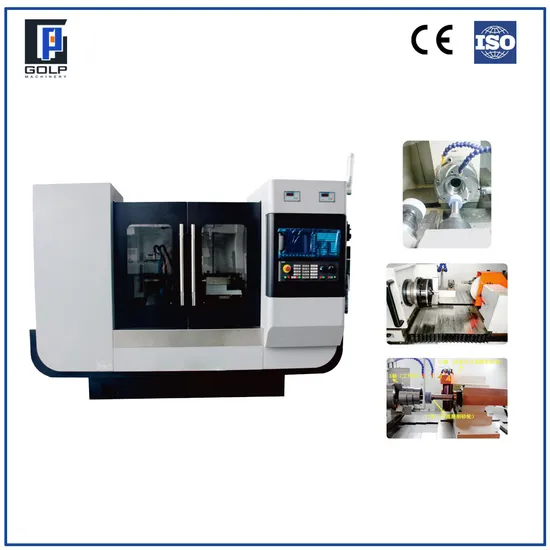

MKF2120 CNC Multifunction Grinding Machine Tool. CNC compound grinding machine. Once Clamping, It Can Finish Internal, External, End Face Grinding.

The machine tool is a three-axis (X feeding axis, Z1 grinding wheel axis, Z2 grinding wheel axis) two linkage CNC compound grinding machine, which is mainly used to grind the inner circular hole, inner conical hole, step hole, inner end face, outer circle and outer end face of the work piece. The grinding cycle is completed automatically (with automatic feed, withdrawal, rough grinding and fine grinding); Automatic dressing of grinding wheel, automatic compensation, etc).

1	ID grinding scope	20-200mm
2	Max. Grinding depth	200mm
3	Max. Grinding OD scope	30-300mm
4	Max. Grinding length	200mm
5	Motor power of work piece	2.2( KW)
6	Servo motor power of X axis	11(NM)
7	Z1,Z2 axis servo motor power	11(NM )
8	Motor power of grinding wheel 1	4(KW)
9	Motor power of grinding wheel 2	7-22( Kw)
10	Motor rotating speed of grinding wheel 1	2800(r/min)stepless speed regulation
11	Motor rotating speed of grinding wheel 2	1000--24000(r/min)Stepless speed regulation
12	Work piece rotating speed	0-600(r/min)Stepless speed regulation
13	Positioning accuracy of X Z1 Z2 axis	5 ( um )
14	Repeat positioning accuracy of X Z1 Z2 axis	2 ( um )
15	Max. Stroke of X axis	550 ( mm )
16	Max. Stroke of Z1 Z2 axis	450 ( mm )
17	Max. Moving speed of X axis	10 ( m/min)
18	Max. Moving speed of Z1 Z2 axis	10 ( m/min)
19	Size of machine tool	3000 x2800 x 2700( mm )
20	Weight of machine tool	6800(KG)
21	Rated power(about)	28(KW)
Processing accuracy
1	ID/OD roundness	2( um )
2	ID/OD cylindricitiy	3 ( um )
3	ID/OD concentricity	3 ( um )
4	Surface roughness of ID/OD	Ra0.4 ( um )
5	Perpendicularity of inner hole, outer circle and end face	4 (um )

WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
