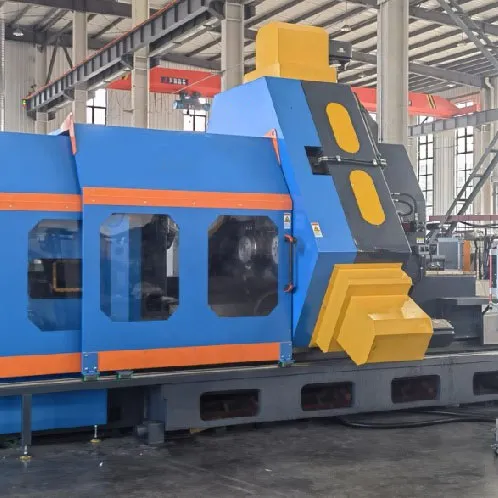

High Quality Aluminum Bottle Cylinder Tube End Hot Spinning Machine Heat Forming Machine

Product Description

High Quality Aluminum Bottle Cylinder Tube End Hot Spinning Machine Heat Forming Machine Product Description

The cylinder blank is generally prepared by the reverse extrusion process. Due to the limitation of the process, the wall thickness is generally relatively thick, usually about 18-24mm, while the gas cylinder requires a wall thickness of about 5-7mm, and the general thickness of the bottle mouth closing part needs to be 10- 12mm, so a strong spin is required for thicker blanks.
Tube strong spinning

Technical requirements	Related parameters
Spinning equipment	Three-wheel CNC spinning machine
Diameter of spinning machine	600mm/800mm
Length of spinning machine	max. 3200mm
Spinning method	Three-wheel spinning
Spinning temperature	Room temperature, special coolant

Tube closing

Technical requirements	Related parameters
Spinning equipment	Special CNC closing and spinning machine
Maximum closing diameter	460,640
Maximum length	3500mm
Spinning temperature	~450
heating method	flame heating
single cylinder time	12min*2ends
Loading and unloading method	Optional manipulator

Specification
The inner and outer surfaces of the strong coil blank should be smooth, and no defects such as cracks, corrosion, inclusions, peeling, bubbles, abrasions, bumps, scratches, folds, straights, pits, etc. are allowed. 2. Internal surface quality requirements: roughness Ra2.0, the surface has no defects such as cracks, pits, heavy skin, bumps, scratches, etc., and the grinding lines on the inner wall are consistent (circumferential). 3. The straightness of the strong coil is not more than 0.15%.

Details Images


Finished product

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Related machines

CNG Gas Cylinder Threaded Screw Machine
1.The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as
well as threading, which are realized by NC programming.
2.Single station device is adopted for input and output materials(semi-automatic); 3.The work piece clamping adopts the front top
bowl positioning.
CNG Gas Cylinder Stamping Machine
Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons
(excluding hydraulic system and loading and unloading systems).
Company Profile

We are professional manufacturer of CNG/LPG/LNG cylinders manufacturing machine for over 30 years. our machines have been exported to Russia, Ukraine, USA, UK, Turkey, Australia, Kenya, Egypt, India etc...
FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: What can you buy from us?
A: All the machine for the CNG cylinder production line.
Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG
machinery with more than 25 years of experience and a strong professional R & D team
Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...
We need to know the following information to make the quotation to you:1. The technical drawing of the cylinder.
2. Daily capacity.
Welcome to inquiry!

---
