Portable Drill Bit Sharpener Power Tool End Mill Grinder

Product Description

Product Description
Functions and Features
1.Can grind 2 flutes carbide and high speed steel ball End mill.

2.Complete dumb-type grinding, all grinding steps are automatic positioning, without adjustment High grinding efficiency, anyone can finish grinding in 1 minute.
3.The grinding parts of ball end mill are the back bevel angle of ball cutting edge, chip pocket and the avoiding surface.
4.High grinding precision, ball head radius accuracy within 0.02mm.
5.The grinding capacity can be adjusted to improve the grinding efficiency and grinding wheel life. 6.Micro sprayer and grinding fluid can be added to improve the life of tool and grinding wheel.

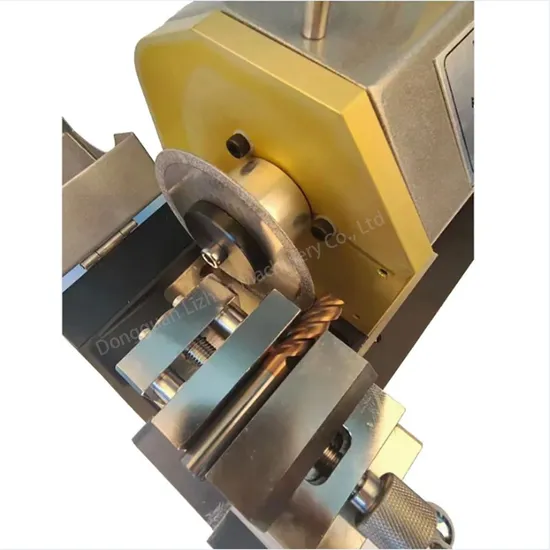

Detailed Photos
Product Parameters

Model	EG-12 ordinary EG-12S Environmental protection	EG-16 ordinary EG-16S Environmental protection	EG-25 ordinary EG-25S Environmental protection
Applicable diameter	Φ3~12mm	Φ3~16mm	Φ4~25mm
End mill grinding Angle	inclination angle 3°,rake angle 20°,back slop angle30°	inclination angle 3°,rake angle 20°,back slop angle30°	inclination angle 3°,rake angle 20°,back slop angle30°
Power	220V/400w	220V/400w	220V/400w
Speed	5000 RPM/Min	5000 RPM/Min	4500 RPM/Min
Grinding wheel	One SDC wheel (CBN optional )	CBN SDC wheel (CBN optional )	SDC wheel (CBN optional )
Packing size	42*36*38cm	42*36*38cm	42*36*38cm
Weight	10.5KG	11KG	13.5KG

Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
