Basic Info.
Application
Liquid, Viscous Fluid, Liquid, Viscous Fluid, Liquid Soap, Wax
Application Area
Chemical, Daily Chemical, Food, Pharmaceutical, Chemical, Daily Chemical, Food, Pharmaceutical, Personal Care Factory
Certification
CE, CE, ISO
Cooling Method
Water Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Operating Type
Continuous Operating
Mixing Type
Frame Wall Scraper Mixing
Homogenizer Speed
0-3600rpm
Discharge
Bottom Ball Valve Discharge
Structure
Main Tank, Platform and Cabinet
Transport Package
Wooden Box Packing
Production Capacity
100sets/Month
Product Description

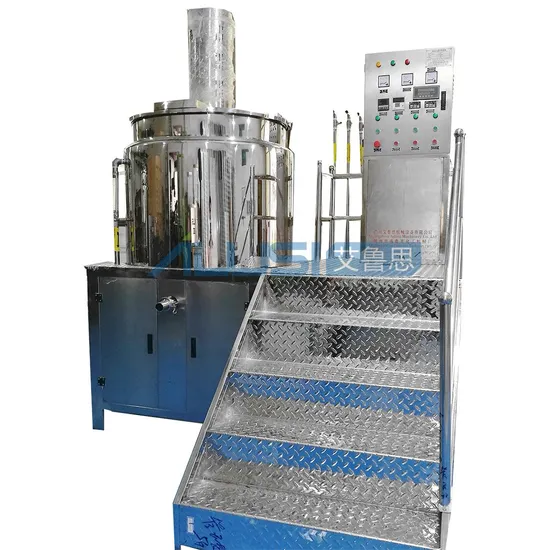

AILUSI MACHINERYManufacturer of Cosmetic | Pharmaceutical | Food | Daily Chemical industrial | GMP StandardCosmetics machinery, liquid soap making machine, shampoo mixing tank
Homogenizing mixer machine has high-speed disperser, mixing and disperse viscously, solid and liquid, etc. various kinds of raw material will be dissolved which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period. To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, lubricating oil, etc.1. The Omnidirectional wall scraping and mixing adopts a frequency converter to adjust the speed. At low temperatures and high viscosity, it can reduce the formation of bubbles.2. Jacket heating and cooling function (steam/electric heating)3. The pot body is welded by three layers of stainless steel plates, mirror polished, in line with GMP requirements.4. High-speed shearing homogenizer 3600rpm, strong mixing of solid and liquid raw materials.5. Schneider switch control button, Delta inverter, Omron temperature control
PRODUCT SPECIFICATIONS
| Model | AHM-1000 | Working capacity | 50L |
| Heating method | Steam/electric | Mixing type | Frame wall scraper mixing |
| Mixing motor power | 0.75KW | Mixing frequency | 0.75KW |
| Mixing Speed | 0-65rpm | Homogenizer frequency | 1.5KW |
| Bottom Homogenizer power | 1.5KW | Homogenizer type | Internal and external circulation(option) |
| Control method | Button control | Frequency converter | Delta/Panasonic/Mitsubishi |
| Electrical components | Schneider/Delixi | Tank materials | Inner layer 5mm/SUS316Middle layer 5mm/SUS304Outer layer 3mm/SUS304 |
PRODUCT CONFIGURATIONMATERIAL SOURCES
CERTIFICATIONS
FACTORY
PROJECT
>>
