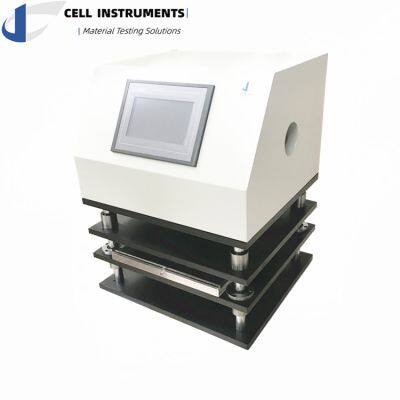

PCT-01 Package Compression Tester
Application
The Package Compression Tester is a versatile and precision instrument designed for pressure resistance measurement across a variety of packaging materials. This essential testing equipment is specifically engineered to assess the durability and integrity of composite film packs, paper cups, bowls, and containers used in diverse industries, including food, medicine, and cosmetics. Additionally, the tester is adept at evaluating the robustness of infusion bags, plastic infusion bottles, blood bags, ice bags, and other similar packaging materials.
Test Principle
Placement: The tester comprises upper and lower pressure plates. The sample (packaging material) to be tested is securely positioned between these plates.
Compression: The upper-pressure plate is actuated to move downward against the sample. This simulates external pressure conditions that the packaging might encounter during real-world usage.
Force Measurement: The force exerted by the lower pressure plate is measured in real time. This data is critical in determining the sample’s bursting performance and its constant pressure resistance capacity. The measurements help in understanding how different materials and designs will perform under stress conditions.
Technical Features
1. HMI touch screen parameter setting and test operation
2. Industrial-grade PLC control system
3. Two test modes of maximum bursting force and constant pressure resistance
4. Automatic constant pressure compensation adjustment function
5. with automatic data statistics
6. Liquid collection device to avoid contamination in case of sample rupture
7. Non-standard test sizes can be customized
8. An RS232 port and professional computer software are available.(optional)
Main Parameters
Measuring range 2000N (other optional)
Measurement accuracy 0.50%
Time range 0~10000S
Platen size 250mm*300mm (can be customized)
Power supply 220V, 50HZ
Dimension 460mm*410mm*590mm
>>
