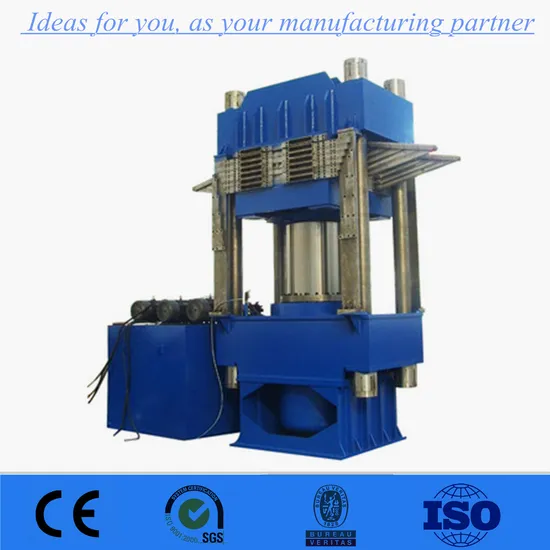

EVA Slipper Vulcanizing Press EVA Sole Foaming Machine

Product Description

Eva Slipper Vulcanizing Press Eva Sole Foaming Machine
EVA foaming machine is used for foaming EVA, PE rubber, which are widely used in shoe material manufacturing, foaming floor, EVA mat, EVA puzzle, thermal insulation material, luggage liner, sporting buffer material, diving dress material and life vest material, etc.
Features:
1. Auto PLC or electric relay control, auto bumping.
2. Fast plate closing speed, long time pressure retaining, back pressure retaining for better product quality.
3. Quick release valve make the opening speed very fast.
4. Plate is designed specially, which make temperature uniform on the plate.
5. Pressure relief when opening mould satisfy the technical for high, middle and low level products.

Main product parameters

Model	XLB-DQ1200X1200	XLB-DQ1400X1500	XLB-DQ1500X1500
Total Pressure (MN)	5.00	8.00	10.00
Platen Size(mm)	1200x1200	1400x1500	1500x1500
Daylight(mm)	150	150	150
Working Layer	4	6	6
Piston Stroke (mm)	500	800	800
Platen Unit Area Pressure (kg/cm2)	35	38	45
Power(kw)	18.5	26	9.5
Overall Dimension(mm)	2400X2100X3200	2650x2400x3600	2750x2400x3600

At present, we have established strong business relations with domestic and international customers. Persisting in the aim of "striving for existence by quality and striving for development by sincerity and credit", we sincerely hope to enter into friendly cooperation with customers on the basis of superior quality, competitive prices and excellent after-sales service, striving for joint resplendence.

---
