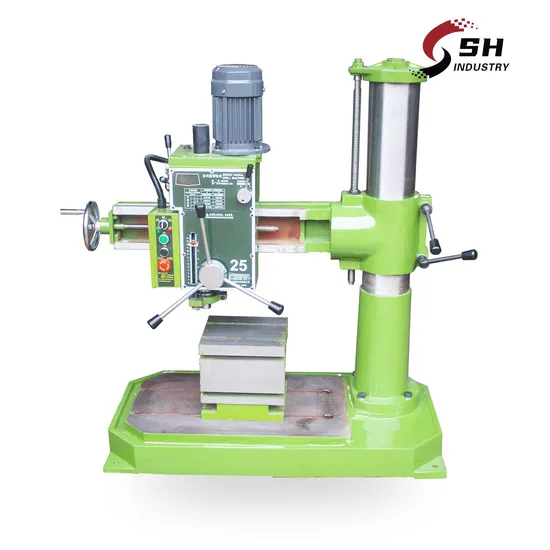

High Quality Universal Mechanical Z3025X7 Radial Drilling Machine for Sale

Product Description

Product Description
High Quality Universal Mechanical Z3025X7 Radial Drilling Machine for Sale
Product Parameters

Main technical parameters	SPECIFICATIONS	Z3025x7
	Max.drilling capacity	25mm
	Diameter of column	150mm
	Spindle travel	135mm
	Distance spindle axis to column surface	300-720mm
	Max. distance spindle nose to base	680mm
	Rotary angle of rocker in horizontal plane	360°
	Spindle taper	MT.3
	Spindle speeds range	100-1600rpm
	Spindle speeds	8
	Diamension of worktable	250×250×250mm
	Diamension of base	1050×550mm
	Motor	750w
	G.W./N.W.	460/375kgs
	Ship measurement	119×64×133cm

Features:
With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etc
Standard accessories:
Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
