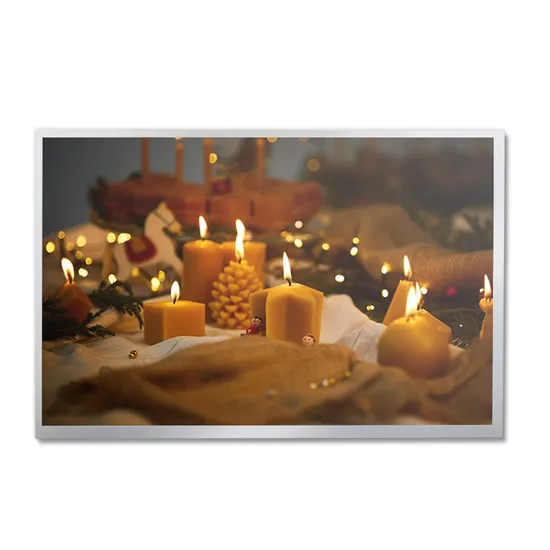

High Contrast Ratio 10.1inch LCD 1280*800 IPS TFT 40 Pin Connector 10.1 Inch Lvds LCD Display Module 1280X800 LCD Screen Panel

Product Description

High Contrast Ratio 10.1inch Lcd 1280*800 Ips Tft 40 Pin Connector 10.1 Inch Lvds Lcd Display Module 1280x800 Lcd Screen Panel

DRAWING General Specifications:

Size	10.1 inch
Resolution	1280(RGB)x800
Display Mode	ADS, Normally Black, Transmissive TFT
Viewing Angle (U/D/L/R)	80/80/80/80 (Typ.)(CR≥10)
Contrast Ratio	1000:1 (Typ.)
Response Time	35 (Typ.)(Tr+Tf) ms
Dot Pitch	0.0565(H)x0.1695(V) mm
Active Area	216.96(H)x135.6(V) mm
Module Size	229.45(H)x149.22(V)x2.62(D) mm
Brightness	500cd/m² (Typ.)
Backlight Type	36-LEDs (white), Without LED Driver
Lifetime	30000Hours (Typ.)
TFT Driver IC	COG Built-in 2 source chips
Interface	LVDS (1 ch, 8-bit) , 40 pins Connector
Input Voltage	3.3V (Typ.)
Operating Temperature	-20ºC~+70ºC
Storage Temperature	-30ºC~+80ºC
Touch Panel	PCAP Touch Support Customization

ABOUT US SGS Certification
Experimental equipment
Q: How can I get some samples?
A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2001 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment.
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.

---
