Portable Induction Heater Induction Brazing Machine

Product Description

Product Description

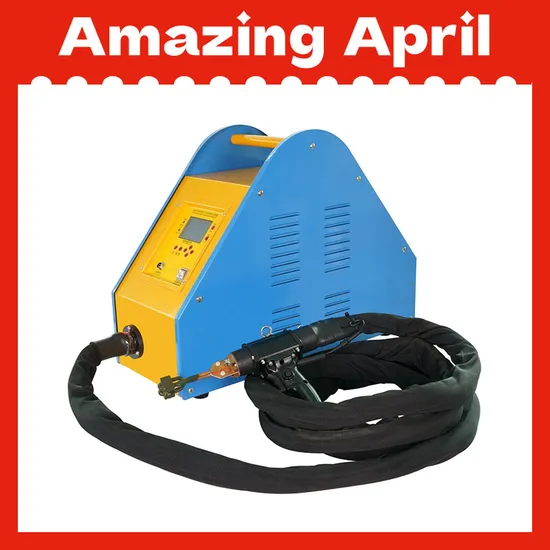

DuroHeater
DH-18KW / 25KW
Portable Induction Heating Equipment
Machine Features
1.Mobile,flexible,accurate,24hours working continuously,save energy and easy to use.
2.DuroHeater is built with the latest microcontroller system,can set the induction heating time and adjust the power as need,also has the function of Remote Control.
3.No flames,no gas,DuroHeater is environment friendly
4.DuroHeater is one kind of mobile induction equipment,and very light,can carry manually.
5.DuroHeater can contact with any kind of customized induction coils.
6.The Induction Head can be mounted easily on a robot arm and integrate into variously automatical producing lines.
Applications Areas
DuroHeater is suitable for induction heating all kinds of electrical conductive materials like copper and brass,aluminum,steel,stainless steel,titanium,and so on.
Widely used for brazing,hardening,quenching,shrink fitting,straightening,
curving and bending,heat treatment,etc.
Technical Data

Model	DuroHeater
	DH-18KW	DH-25KW
Output Power	0---18KW(Adjustable)	0---25KW(Adjustable)
Duty Cycle and Working Time	100%, 24Hours
Frequency Range	10-25kHz
Induction Cable Length	4M(Standard Length),Can be max 200M
Supply Voltage	3-Phase,380V-415V-480V±10%,50/60Hz
Input Water	Less than 40°C, 4-6Bar,7.0-9.0ph
Outer Dimensions(L*W*H)	42*28*39CM
Total Weight with Induction Cable and Head	40KG(Approx.)	50KG(Approx.)
Weight of Induction Head	1.2KG	1.5KG

---
