CE High Quality Animal Feeds Production Line Chicken Duck Goose Pig Dairy Goat Compound Feed Mill Plant

Product Description

CE High quality animal feeds production line chicken duck goose pig dairy goat compound feed mill plant

It is suitable for processing various raw materials, such as corn, soybean, soybean meal, rice, rice bran, wheat, barley, straw, pasture and other raw materials suitable for animal feed. The multi-functional feed production line can make poultry feeds, livestock feeds, ruminant feeds, premix feeds, aqua feeds such as shrimp feeds, sinking fish feeds, crab feeds etc. We could provide customized scheme according to customers condition and requirement.

Techincal process of whole feed production line includes:

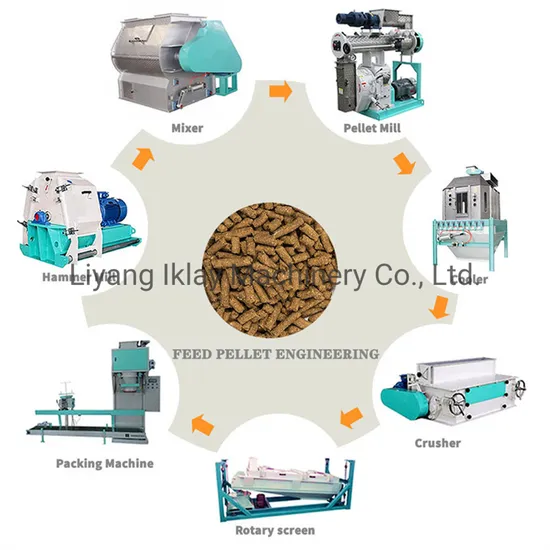

Receiving& Precleaning process→ Grinding process→ Batching& Mixing process→ Pelleting process→ Cooling (Crushing if need)& Sifting process→ Packing process

The Precleaner and Permanent Magnetic Cylinder are used to remove the broken straw, corn cobs, soil, stone, rope, iron, metal and other impurities that may be contained in the raw materials to protect the subsequent equipment from damage.


Corn, wheat, soyabean etc. raw materials are grinded into the required fineness by the Hammer Mill. It is equipped with an impeller feeder and pulse dust collector system, which improves the working efficiency of the hammer mill. Hammer mill grinding process is important, which influence the power consumption, production cost, capacity and fodder quality.


Batching& Mixing is an important process in the feed pellet production line. A good mixer makes the composition of the feed pellets more uniform and the feed quality is higher. We have different feed mixers for choice.

SZLH Series Feed Pellet Machine is our main product. We can recommend you suitable feed pellet mill according to different capacity, different formula and demands.
Technical Parameter:

Item		Technical parameters and performance index
		SZLH250	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508	SZLH558	SZLH678	SZLH768
Capacity(t/h)		1-1.5	2-5	2-7	3-12	3-14	4-20	4-22	8-28	10-35
Power (kw)	Main machine	15	37	55	75/90	90/110	110/132/160	132/160/200	200/220/250	250/280/315
	Screw feeder	0.55	0.75	0.75	1.5	1.5	2.2	2.2	2.2	2.2
	Conditioner	2.2	2.2	3	5.5	5.5	7.5	7.5	11	11
Inner diameter of die(mm)		250mm	320mm	350mm	400mm	420mm	508mm	572mm	678mm	768mm
Effective width of die(mm)		120mm	120mm	120mm	120mm	120mm	150mm	200mm	180mm	210mm
Pellet size(mm)		1-12mm	1-12mm	1-12mm	1-12mm	1-12mm	1-12mm	1-12mm	1-12mm	1-12mm
No. Of press roll		2	2	2	2	2	2	2	2	2

The feed pellets have a relatively high temperature and are relatively moist just after pelleting. We equipped with a Counter Flow Feed Cooler to reduce the pellets' temperature to room temperature to ensure the integrity of the pellets. Rotary Screener can screen out the pellets that do not meet the requirements of the finished product and reprocess it to ensure the quality of the finished product.


Automatic Packing System can used to package the final feeds. The qualified pellets are packed into plastic bag from 10 kg to 100 kg or 1 ton. Then use thermoplastic sealing machine to sew, these can make the pellets dry and water-proof to extend the feed pellets storage time.
We also customize Automatic PLC Control System, higher efficiency and more convenient operation.




Liyang Iklay Machinery Co., Ltd. is a professional manufacturer and supplier specialized in designing, manufacturing, installing and commissioning: Poultry&livestock&aqua feed production line, Biomass pellet production line, Cat litter production line; Spare parts for hammer mill& pellet mill, such as ring dies, rollers, hammer blades and screens.
Our main products include precleaner, hammer mill, mixer, pellet mill, cooler, screener, automatic packing machine other auxililary equipments and spare parts etc. We have more than 10 years rich experience in the field.
We have been committed to providing customers with valuable services and high-quality products to satisfy your needs. It is for this reason that we have become a reliable and long time partner for our customer. Looking forward to our cooperation and realize win-win.




1. Project Investment Analysis:
According to customer needs, formula, production capacity and etc, IKLAY gives customers detailed display of each equipment of the complete production line, quotations, and designs the most suitable production line for customers.
2. Finish whole process from order to delivery:
IKLAY meets the needs of user with excellent whole process management, from the material procurement, manufacturing, quality inspection and test machines before delivery, process assurance to tracking of the process, which provide quality and security for customer.
3. Installation training:
We not only send engineers to the customer site for guidance, installation, commissioning, trial operation and formal operation, but also train operators to ensure stable and safe operation of the production line.
4. Regular return visits:
Regular visits and contacts with customers are used to know customers' use of products, listen to customers' opinions, and provide timely services for customers with quality problems.

---
