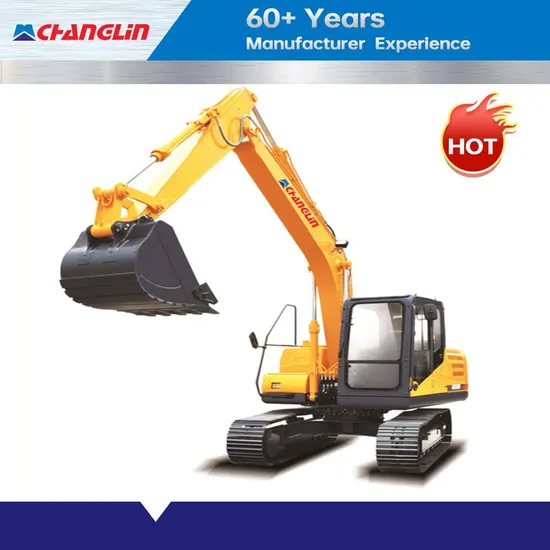

China Changlin Original Hydraulic Crawler Excavator Zg150 with Competitive Price

Product Description

Product Description
CHANGLIN ZG150 Fixed EFI engine (conforming to Stage III emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different work; reliable and accurate fuel injection system, real-time control of fuel injection, making combustion more complete, fuel efficiency; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.
Based on the above advanced technology, CHANGLIN ZG150 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
•new generation of high-power EFI engines with strong power, low fuel consumption and high reliability
•New hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and easier operation
•Equipped with large-caliber cylinders, optimizing the arrangement of each key hinge point, improving the digging force of the whole machine, setting the automatic supercharging function, and automatically increasing the digging force as the load increases
•New generation control system intelligently adjusts the hydraulic absorption power according to the working conditions, and optimizes the system matching to ensure the full performance of the whole machine.
•Equipped with high-resolution, high-brightness 5.7-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions
•Safe and reliable new cab with automatic air conditioning
Product Parameters

	ITEM
Dimensions	Operating weight	Kg	13890
	Rated bucket capacity	m3	0.6
	Overall length	mm	7762
	Overall width(600mm track shoe)	mm	2510
	Overall height	mm	2983
	Trunable width	mm	2510
	Cabin height	mm	2825
	Groundclearance of counterweight	mm	915
	Engine cover height	mm	2243
	Min. ground clearance	mm	416
	Tail length	mm	3205
	Turning radius of turnable	mm	2306
	Wheel base of track shoe	mm	4030
	Chassis length	mm	3010
	Chassis width	mm	2490
	Track shoe gauge	mm	1990
	Standard track shoe width	mm	500
Performance	Max. traction	KN	122
	Travelling speed (H/L)	Km/hr	5.9/3.4
	Swing speed	rpm	13
	Gradeability	Degree(%)	35(70%)
	Ground pressure	Kgf/cm2	0.423
Working Range	Maximum digging radius	mm	8335
	Ground maximum digging radius	mm	8203
	Maximum digging depth	mm	5491
	Ground maximum digging depth	mm	5288
	Maximum vertical digging depth	mm	4826
	Maximum digging height	mm	8679
	Maximum dumping height	mm	6174
	Min. front turning radius	mm	2605
	Bucket digging force	kN	100
	Stick digging force	kN	68
Engine	Model		QSF3.8-C115
	Type		4-cylinder in-line, four-stroke turbocharger
	Emission		Tier III
	Displacement	L	3.76
	Rated power		86KW(115PS)@2220RPM
	Max. torque	N.m	470N.m@1400rpm

Company Profile
Our Advantages
After Sales Service
Packaging & Shipping
FAQ
Q1:Are you original manufacturer?
A: Yes, we CHANGLIN are an official leading manufacturer in construction machinery. We set up juint venturers in 1990s.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, EAC, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,

---
