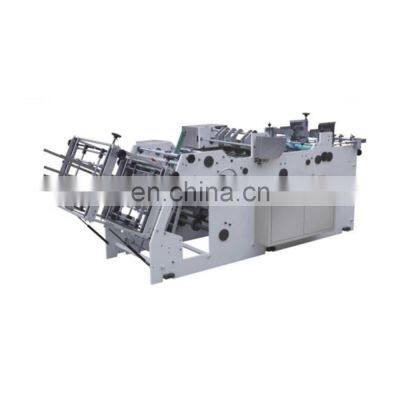

Carton erecting mahine (two molds free)

Product Description

Product Description
Product OverviewLJZHJ-800 Carton erecting mahine (two molds free)Automatic three-dimensional hamburger box，packing box，chicken box, three-dimensional carton machine.FEATURES AT A GLANCE capacity: 50-160pce/minSuitable Material: 200-600g/m²cad paper,PE coated paper,kraft paper,corrugated paperLength: L80-450mm,degree:5° -40°Width: B100-600mmHeight: H15-200mmTotal Power: 4.0KWTotal Weight: 2.2TOVerall Dimension: 3600X1500X1700mmPower Source: 380V 50HZThe chain drive is adopted in the machine to ensure the smooth running,and endurable structure.Each part is separated to reduce noise and workload,as well as to increase the stability.Time of paper feeding is adjusted by cam.simply operating,reducing failure rate.And vacuum-sucking paper feedingEvery part of forming and collecting system can be adjusted according to the size of mold.The whole collection system can be opened to change mold and install the forming parts conveniently.It adapts paper tape counting equipment to count product quickly and accurately,and to readjustedtouch screen can switch freely among multiple languages.Exclusive thickening of the body iron plate, flat grinding on both sides, to ensure the flatness of the frame iron plate! The machine is good or not, the cost is willing to spend itComponents Brand:ModelLJZHJ-800General motors4.0KWThree-phase380V/50HZGluing motors0.75kw220/380vBeltPaper feeding beltUSABearingMain bearingJAPAN HRBMain componentsLinear guidewayHIWINTaiwan HIWINAll other electri partSIEMENSSIEMENSSolenoid valveAIRTACTaiwan Air TACElectrical componentsLow-voltage apparatusSIEMENSThe inverterSIEMENSTime relaySIEMENSPLCSIEMENSTouch screenSIEMENSCustomer Photos

---
