Basic Info.
Model NO.
CW6263E/CW6280E/CW62100E
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
Square Turret
Power Source
Mechanical Drive
Precision
Normal Precision
Certification
CE, ISO 9001, BV
Max. Swing Dia. Over Bed
630/800/1000mm
Workpiece Length
1000-6000mm
Transport Package
Metal Pallet Package
Specification
3510*600*2140mm
Production Capacity
2000 PCS/Year
Product Description

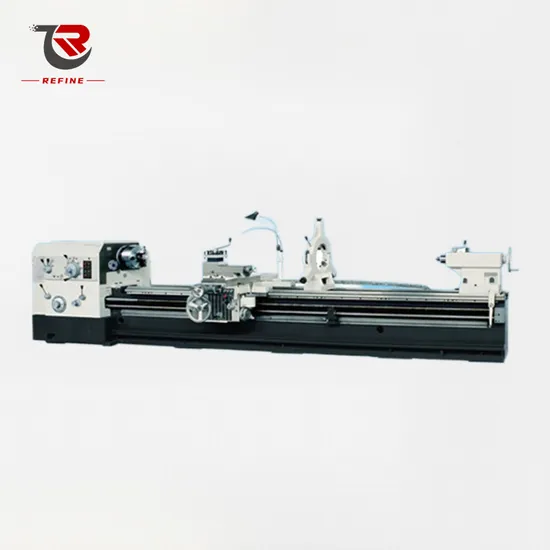

Heavy Duty Lathe Machine Engine Lathe/Universal Lathe/Gap-Bed Lathe
PRODUCTION DESCRIPTION
The gear of the headbox has been processed by high frequency quenching and precision grinding, and the precision of the gear can reach 7 levels. Dimensional accuracy of parts processed on this machine can reach IT7 level, surface roughness can reach 1.6 level High strength cast iron bed Bed guide rail adopts mountain and flat guide layout High rigidity mechanical tool rest Can process common metric, inch, module, diameter thread MACHINE PICTURES
PARAMETERS
| MODEL CFW6280Bx2000mm |
| Max. swing over bed | 800mm |
| Max. swing over cross slide | 480mm |
| Swing over gap | 1000mm |
| Width of bed | 550mm |
| Maximum length of work piece | 2000mm |
| HEADSTOCK |
| Spindle hole | 105mm |
| Spindle taper | ยข 120mm Taper1:20 |
| Spindle speeds | 18kinds; 7.5-1000r/min |
| GEARBOX THREADS & FEEDS |
| Metric threads mm | 1-240mm (50 kinds) |
| Inch threads TPI | 14-1 (26 kinds ) |
| Module threads mm | 0.5-120mm (53 kinds ) |
| Diametric threads DP | 28-1 (24kinds ) |
| Steps and range of longitudinal feeds range | 64kinds; 0.05-24.3mm/r |
| Range 1:1 | 0.1-1.52r/min |
| Range 16:1 | 1.6-24.3mm/r |
| Cross feed range | 0.05-12.15mm/r |
| Range of micro feed with change gear | 0.05-0.912mm/r |
| Longitudinal and cross feed rate | 1/2 |
| Rapid move speed of carriage | 4000mm/min |
| CARRIAGE |
| Max. Travel of lower slide | 420mm |
| Max. Travel of upper sllide | 200mm |
| TAILSTOCK |
| Sleeve travel | 250mm |
| Sleeve taper | MT6 |
| MOTOR |
| Main motor power | 11kw |
| Rapid move motor power | 1.1kw |
| Power of coolant pump motor | 90w |
| Weight about(kg) | 4250kg |
| Dimension(L*W*H) | 4200*1450*1550mm |
