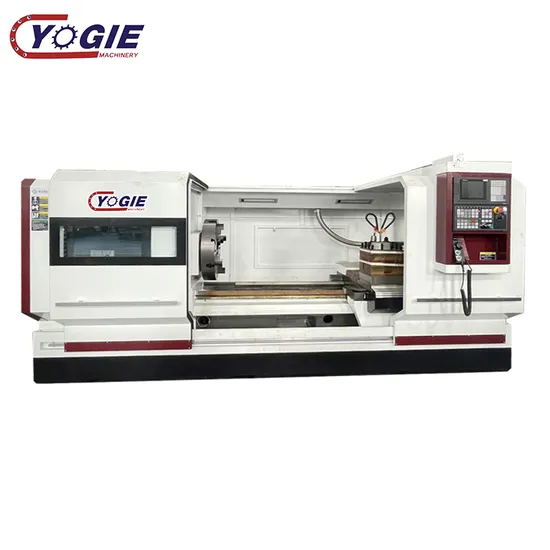

Ck6180 High Rigidity Professional Manufacturer China Customized CNC Lathe Machine

Product Description

Product Description
CNC LATHE
Our company is equipped with all kinds of advanced large-scale machining equipment, the main products are pipe thread lathe, CNC pipe thread lathe, oblique bed CNC pipe thread lathe, ordinary horizontal lathe, CNC lathe, obligue bed CNC lathe, heavy CNC lathe, turning iron compound turning center, CNC cylinder lathe, etc., with an annual output of more than 1000 sets ; it is widely used in petroleum exploitation, geological exploration, mineral mining, chemical smelting, pipeline construction, machinery manufacturing and ship construction all over the world.

Product Parameters

	SPECIFICATION	UNIT	CKJ6163	CKJ6180(550)
Capacity	Swing over bed	mm	630	800
	Swing over cross slide	mm	350	520
	Distance between centers	mm	1000/1500/2000/3000/4000/5000/6000
	Guideway width	mm	550	550
	Max. load capacity	T	3	3
Spindle	Spindle bore	mm	104	104
	Spindle bore taper	-	Metric φ120/MT5	Metric φ120/MT5
	Spindle nose type	-	C11	C11
	Spindle speed steps	-	VF.3 steps	VF.3 steps
	Spindle speed range	rpm	10-1000	10-1000
	Chuck	mm	φ315 3-jaw manual	φ315 3-jaw manual
Turret	Turret/tool post	-	NC turret 4 position	NC turret 4 position
	Tool shank size	mm	32x32	32x32
Feed	X axis travel	mm	320	420
	Z axis travel	mm	850/1350/1850/2850/3850/4850/5850
	X axis rapid traverse	mm/min	4000	4000
	Z axis rapid traverse	mm/min	6000	6000
Tailstock	Tailstock quill diameter	mm	φ100	φ100
	Tailstock quill taper	-	MT5	MT5
	Tailstock quill travel	mm	250	250
Motor	Main spindle motor	kw	11	11
	Coolant pump motor	kw	0.125	0.125
Dimension	Width x Height	mm	1750x1850	1850x1900
	Length	mm	3300/3800/4300/5300/6300/7300/8300
Weight	Net weight	T	3.7/4.1/4.5/5.3/6.1/6.9/7.7	3.9/4.3/4.7/5.5/6.3/7.1/7.9

Company Profile
Our Customers

FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

---
