Chengheng Plastic Machinery Factory Price CE Certified 2000 1800 1600mm Ab/ABA Three Layers Blown Film Production Line

Product Description

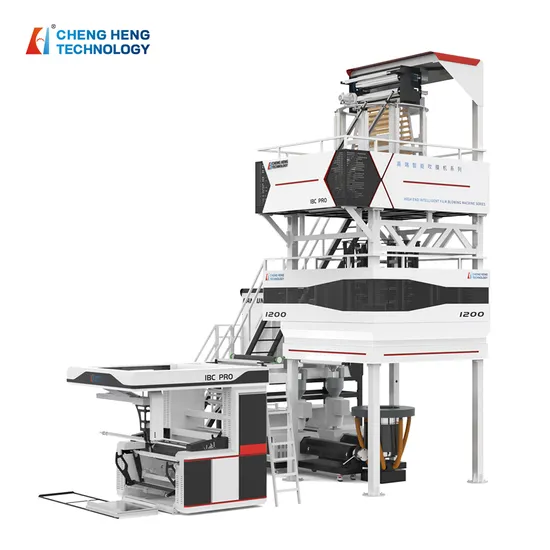

High Speed ABA/AB LDPE Film Blowing Machine Product Description
High Speed ABA vertical rotary film blowing machine adopt vertical traction device and the film thickness is more even. Compared with rotary die head, the vertical traction device solve the oil leakage and granules leakage. To a certain extent,the winding of this machine is very neat, and there will be no tendon bursting phenomenon. High speed ABA vertical rotary film blowing machine makes up for the defect that the rotary mold cannot produce high density polyethylene, it not only could produce low density polyethylene plastic. The height of high speed ABA vertical rotary film blowing machine similar with common machine, and don't worry the warehouse height. For most workers, this high speed ABA vertical rotary film blowing machine is easy to operate, safe, convenient and durable. Its winding has the function of automatic unloading, which saves labor costs. Product Parameters

Model	45/45-900	50/50-1200
Width of the film	200-700mm	500-1000mm
Thickness of the film	HDPE:0.008-0.08mm LDPE:0.02-0.15mm
Output	25-120kg/h	40-160kg/h
	According to different width, thickness of film,die size and raw material characteristics to change
Raw material	HDPE LDPE LLDPE CACO3 RECYCLING
Diameter of screw	Φ45/45	Φ50/50
L/D ratio of screw	32:1 (With force feeding)
Gear box	146#*2	173#*2
Main motor	15kw	18.5KW
Die diameter	Φ80/150mm	Φ100mm/250mm

Detailed Photos

Certifications
Company Profile
Hebei Chengheng Plastic Machinery Technology Co., Ltd. is located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. The transportation is very convenient.The company covers an area of 26,000 square meters. We have a modern intelligentoperation workshop, specializing in the R&D and production and sales of biodegradable film blowing machines, ultra-high-speed intelligent film blowing machines, multi-layer co-extrusion intelligent film blowing machines and other plastic machinery.
Exhibition
Packaging & Shipping
FAQ
Q: How about after-sales service? How long is the machine warranty?
A: We guarantee lifetime after-sale service once you bought our machine, you can call us or send us any questions about the machine.
Q: How long is your delivery time and how many machines can you produce per month?
A: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q: How long can your machine work continuously?
A: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q: Does your factory need agents? What are the thresholds?
A: We need to recruit agents, welcome to inquire for more details.
Q: Where is your factory? How can I visit there?
A: We are located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. It only takes one hour by high-speed rail from Beijing and 2-3 hours by plane from Shanghai and Guangzhou.Warmly welcome domestic and foreign customers to visit us.

---
