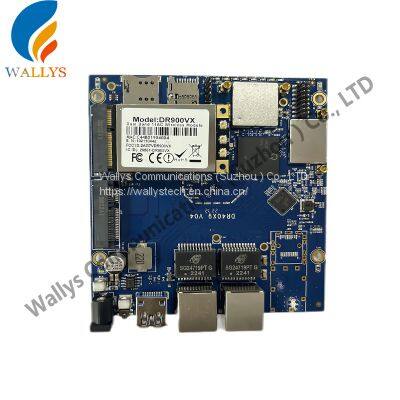

Wallys industrial 5G router/DR40x9 Quaclomm IPQ4019/IPQ4029 802.11AC 2x2 2.4G&5G Support all the modules of Quectel
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.
Skype/EMAIL:sales@wallystech.com
APPLICATIONS
+ Profi WiFi hotspot coverage
+ Commercial radio coverage
+ Hotel Wireless application
+ Country coverage
+ Internet for passengers (bus, train, plane, …)
+ Security Surveillance
+ Some special scene application
+ Heavy-duty industrial environment use
Featuring with industrial-grade IPQ4019/IPQ4029 chipset
Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module
Support 4.940GHz to 5.825GHz Frequency Range
Support 2.400GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/AC
Support fixed data rate
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Our Firmware supports all the modules of Quectel
Parameter
| Rating
| Unit
|
Supply Voltage
| 24V~48
| V
|
Operating Temperature Range
| -40 to +70
| ºC
|
Storage Temperature Range
| -45 to +105
| ºC
|
Operating Humidity Range
| 5 to +95 (non-condensing)
| %
|
Storage Humidity Range
| 0 to +90 (non-condensing)
| %
|
Symbol
| Parameter
|
CPU
| IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz）
|
Antenna Connector
| 2 x 5G MMCX connectors;2x2.4G MMCX
|
10/100/1000Mbps Gigabit Ethernet
| 2xRJ45
|
SFP connector
| 1xSFP fiber module connector (optional)
|
3G/4G connector
| 1xminipcie 3G/4G connector support with two sim card
|
USB connector
| 1xUSB 3.0 connector
|
POE
| 24V~48V passive POE
|
DC Jack
| 24V~48V power supply
|
ROHS Compliance
| YES
|
Dimension
| 115mm x 105mm x 16mm
|
Max Power
| 48.1V x 0.180A= 8.658W
|
Nor Flash
| 2MB~32MB
|
Nand Flash
| 128MB
|
DDR
| 256MB~512MB
|
| Radio TX Specifications(5180MHz-5825MHz) |
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
802.11a
| 6 Mbps
| 27dBm
| 30dbm
| ±2dB
|
54 Mbps
| 23dBm
| 26dbm
| ±2dB
|
802.11n HT20
| MCS0, MCS8
| 26dBm
| 29dbm
| ±2dB
|
MCS7, MCS15
| 22dBm
| 25dbm
| ±2dB
|
802.11n HT40
| MCS0, MCS8
| 25dBm
| 28dbm
| ±2dB
|
MCS7, MCS15
| 21dBm
| 24dbm
| ±2dB
|
802.11ac
| MCS0, MCS10,MCS20
| 25dBm
| 28dbm
| ±2dB
|
MCS9,MCS19,MCS29
| 19dBm
| 22dbm
| ±2dB
|
| Radio RX Specifications(5180MHz-5825MHz)
|
Operating Mode
| Data Rate
| Sensitivity
|
802.11a
| 6 Mbps
| -96dBm
|
54 Mbps
| -78dBm
|
802.11n HT20
| MCS0, MCS8
| -93dBm
|
MCS7, MCS15
| -73dBm
|
802.11n HT40
| MCS0, MCS8
| -90dBm
|
MCS7, MCS15
| -70dBm
|
802.11AC HT40
| MCS0, MCS10,MCS20
| -90dBm
|
MCS9,MCS19,MCS29
| -67dBm
|
802.11AC HT80
| MCS0, MCS10,MCS20
| -88dBm
|
MCS9,MCS19,MCS29
| -62dBm
|
| Radio TX Specifications(2412MHz-2482MHz)
|
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
802.11g
| 6 Mbps
| 27dbm
| 30dbm
| ±2dB
|
54 Mbps
| 25dbm
| 28dbm
| ±2dB
|
802.11n HT20
| MCS0, MCS8
| 26dbm
| 29dbm
| ±2dB
|
MCS7, MCS15
| 25dbm
| 28dbm
| ±2dB
|
802.11n HT40
| MCS0, MCS8
| 26dbm
| 29dbm
| ±2dB
|
MCS7, MCS15
| 24dbm
| 27dbm
| ±2dB
|
| Radio RX Specifications(2412MHz-2482MHz) |
Operating Mode
| Data Rate
| Sensitivity
|
802.11g
| 6 Mbps
| -96dBm
|
54 Mbps
| -78dBm
|
802.11n HT20
| MCS0, MCS8
| -93dBm
|
MCS7, MCS15
| -73dBm
|
802.11n HT40
| MCS0, MCS8
| -90dBm
|
MCS7, MCS15
| -70dBm
|
Item
| Information
|
DR40X9-1
| CPU is IPQ4019
|
DR40X9-2
| CPU is IPQ4029
|
Item
| Information
| Note
|
1
| PWR LED
|
|
2
| Eth1 LED
|
|
3
| Eth2 LED
|
|
4
| 2.4G LED
| GPIO32
|
5
| 5G LED
| GPIO50
|
6
| Strength LED
| GPIO36
|
7
| Strength LED
| GPIO39
|
8
| NC
|
|
9
| GND
|
|
10
| Uart1_TX
| GPIO8
|
11
| Uart1_RX
| GPIO9
|
12
| NC
|
|
13
| NC
|
|
14
| NC
|
|
15
| GND
|
|
16
| PWR
| 3.3v
|
Item
| Information
|
1
| PWR
|
2
| Uart0 TX
|
3
| Uart0 RX
|
4
| GND
|
Item
| Information
|
GPIO11
| Control for the switch of SIM cards
|
