Aluminium Copper Bi Conductor DIN Rail Terminal Block Connector Jut10-50, 90, 150mm

US$0.90
50-499 Pieces
US$0.85
500-4,999 Pieces
US$0.80
5,000+ Pieces

Basic Info.

Model NO.
JUT10-50
Application
Conduct Electricity
Character
High Temperature Resistance
Species
Terminal
Production Process
Injection Molding
Shape
Square
Interface Type
AC/DC
Certification
UL, TUV CE
Brand
Utl
Color
Grey/Green/Yellow
Terminal
Ns32 G Type or Ns35 U Type
Standard
IEC 60947-7-1
Size
W:29.5 H:60.5 L:95
Connection Capacity (mm2)
95-150
Rated Voltage /Current
1000V/320A
Operating Temperature(C)
-40-+105c
Housing Material
Polyamide
Mounting
DIN Rail
Cover
PA66 UL94 V-0
Screw
Zinc Plated Steel
Conductor
Tin Plated Aluminium Alloy
Spring
Zinc Plated Steel
Buckle
Zinc Plated Steel
Screw Torque
4.5 N*M
Transport Package
Export Carton
Specification
300-2 AWG
Trademark
UTL
Origin
China
HS Code
85369090
Production Capacity
2000000PCS/Year

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg

Product Description

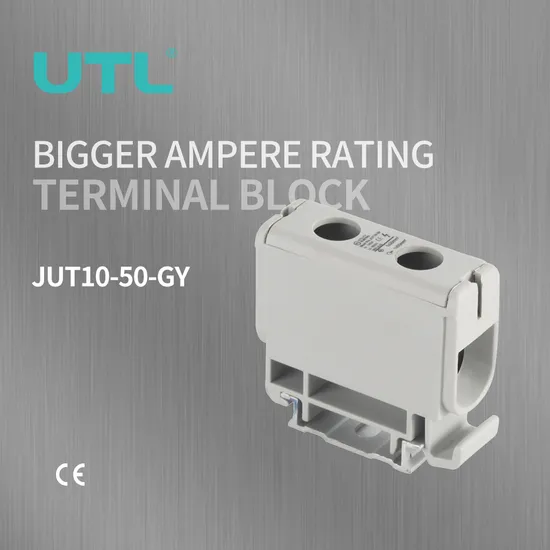

JUT10series Alumium /Copper Conductor Large Voltage Bus bar Terminal Connector
Product Description

1. Terminals with universal mounting feet which can be installed on the U- rails NC 35 and G -type rail NC32 .
2. Closed screw pilot holes to ensure ideal screwdriver operation .
3. For a plurality of cross-sectional level of terminals equipped with a unified attachments, such as the end plates, packet separator.
4. Potential distribution through a fixed bridge or insert line access terminals central cavity side plug -in bridge .
5. Large current aluminum block terminal, suitable for aluminum wire butt, with a maximum of 240mm squared wire.

Product Parameters
Name
 Data
 Unit
Model
 JUT10-50
Number of connection points
 2
Number of potentials
 1
Color
 Grey,blue,yellow green
Length
 49
 mm
Width
 17.7
 mm
Height
 43
 mm
Pollution degree
 3
Insulation material group

Rated surge voltage
 8
 KV
Rated voltage
 800
 V
Nominal current
 160
 A
Min.connection capacity
 2.5/14
 mm²/AWG
Max.connection capacity
 50/0
 mm²/AWG
Line direciton
 Side inlet
Strip length
 16mm
Insulation material
 PA66
Flame-retarded Rating
 UL94 V-0
