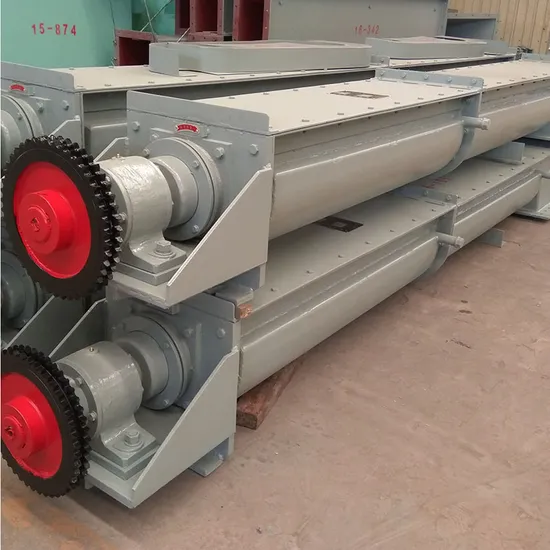

Hot Sale Automatic Bulk Material Conveying Machine Screw Spiral Auger Conveyor

Product Description

Product Description Factory New Sale Heat Resistant Customized Size Screw Auger Conveyor Spiral Conveyor for flour cement ash powder conveying
Screw auger conveyor can implement continuously conveying in vertical, inclined or horizontal of all directions that is widely used in chemical, building materials, metallurgy, electric power, food, feed industry and others. It's also the ideal conveying equipment for powder, fine granular non-cohesive materials such as cement, chemical raw materials, flour, feed, corn powder and othermaterials. The vertical screw conveyor is not suitable for conveying block and sticky materials.

Technical Parameters Screw auger conveyor
Model	LS100	LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800
Screw Diameter(mm)	100	160	200	250	315	400	500	630	800
Screw Pitch(mm)	100	160	200	250	250	355	400	450	500
Rotational speed(rpm)	71~140	56~112	50~100	45~90	40~80	36~71	32~63	25~50	20~40
Capacity(m³/h)	1.1~2.2	3.1~7	6.2~13	11~22	15.4~31	31~62	50~98	77~140	102~200

Detailed Photos Main Features 1) Simple structure, low cost, strong seal, safe and environmentally friendly. 2) Multiple points for load and unload. 3) Be widely used in various industrial department, chemical, electric power, metallurgy, coal, mine, food, cement and so on. 4) Mainly used to transport powder, granular and lump material such as coal, cement ash, slag and granular grain. 5) It is not suitable for transporting material which is perishable, high viscous and easy to agglomerate. Related Products
Certifications Company Profile HU BEI TIANYI MACHINERY CO., LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprise, which specialized in designing & producing & installing the specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province; it is only 50 kilometers far from the Three Gorges Dam &20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital asset reaches nearly 89 million and we have 200 staffs, including 65 professional engineers. Our main fields: smelting, thermal power industry, waste disposal and building materials industry. Our main products: conveying equipment, crushing equipment, screening equipment and dust removal equipment. Integrated system: material conveyor system and dust removal system.
