Backpack High Speed Portable Concrete Vibrator

Product Description

Backpack High Speed Portable Concrete Vibrator

Product Uses

Hight Frequency Concrete vibrator is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket,crowded reinforcing stell bar net coagulation dirt wall and major and medium small architectural engineering. It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.

Product Description

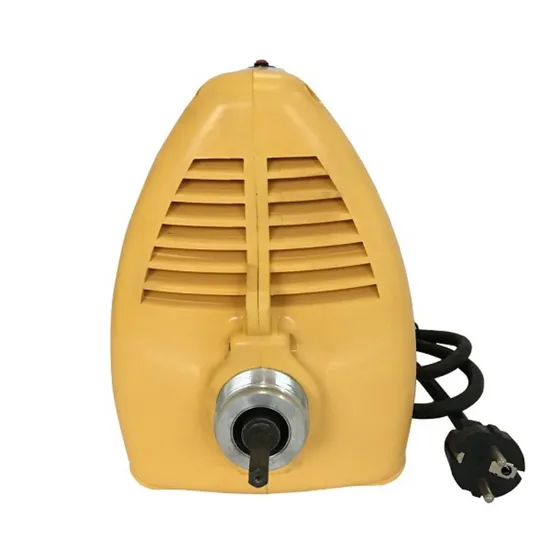

1.The ZID Series high frequency concrete vibrator is an immersion type vibrator. During operation,the vibrating poker that is attached to the vibrator has to be immersed into the concrete .The poker has an eccentric vibrating element inside it .
2. The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration . Via the flexible tube,the vibrator transmits the vibration to the poker via the flexible tube .It is spun as much as 12000 times per minute,which makes it easy to cause resonance with the poured concrete .
3. The lightweight vibrator only weights to 5.2kgs to 6kgs,giving ease of operation .It is one of the most widely used products,know for its low noise,energy efficiency, reliable functioning,high safety,and good vibrating performance.

Technical Specification

Model	ZID-150E	ZID-230E	ZID-230C	ZID-200	PD-230
Power (W)	1500	2300	2300	2000	2300
Voltage (V)	220-230	220-230	220-230	220-230	220-230
Speed (rpm)	17000	17000	17000	17000	17000
Packing Size (cm)	45*36*29.5	45*36-29.5	44*36*28.5	44*36*28.5	44*36*28.5
Weight (kg)	5.3	5.5	6.2	5.9	6.0

Match concrete vibrator shaft

Item	High-frequency vibrator shaft
Model	¢(mm)	ZX-35	ZX-38	ZX-45
Diameter of head	¢(mm)	35	38	45
Length of head	L (mm)	330	380	390
Vibrating Frequency	(HZ)	200	200	200
Vibrating Ampitude	(mm)	0.91	1.1	1.2
Diameter of flexiable hose	D(mm)	30	30	30
Diameter of flexiable shaft	D(mm)	10	10	10
packing size	cm	75*75*5.5cm
picture	The flexible hose and flexile shaft is base on high speed .

Match vibrator shaft:
Packing:

FACTORY

SAMPLE ROOM
