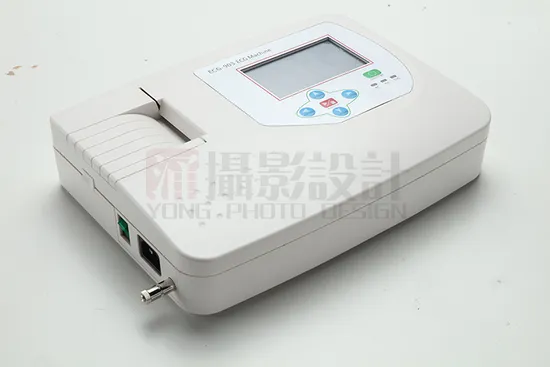

Sinnor 3 Channel ECG Machine 12-Lead ECG Cable EKG Machine

US$246.00 2 Pieces (MOQ)

Basic Info.

Model NO.
ECG-903
Power Type
Electric
Group
Adult
Transport Package
Carton
Trademark
Sinnor
Origin
Shenzhen, China
HS Code
9018110000
Production Capacity
5000PCS/Year

Product Description

Sinnor 3 channel ECG machine 12-lead ecg cable ekg machine Function Features of ECG Machine Modern in design, light in weight, compact in size. Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms. 5.6'' color touch screen, both push-button and touch operation. 4.3" color touch screen can be choose. Sensitive filters of ADS, HUM, and EMG. Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor's burden and improve working efficiency. Automatic adjustment of baseline for optimal recording. Thermal printer with 80mm print paper, synchronization print Lead off & lack off paper detection function. Built-in rechargeable li-ion battery (11.1V/4000mAh), AC/DC power conversion. Adapt to 100-240V, 50/60Hz AC power supply Historical data and patient's information can be reviewed and printed. Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software. The machine can store over 400 ECG reports in its built-in flash. Standard RS232 and USB communication interfaces. Connect with PC via ECG workstation software. Sleep mode to save energy and extend LCD life The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
Parameters of ECG Machine
CMRR ≥ 100dB, with AC Filter Calibrating voltage 1mV± 3%
Input circuit Floating Voltage tolerance ± 500mV
Input circuit current ≤ 0.1µ A Time constant > 3.2s
Resolution 12bit/1000Hz Frequent response 0.05Hz~150Hz
Operation mode Manual/Auto Noise level ≤ 15µ Vp-p
Filter AC. EMG Filter Threshold ≤ 20µ V
Drift filter Anti-Drift System Paper speed 12.5, 25, 50mm/s (± 3%)
Input Impedance > 50MΩ Sensitivity 5,10,20mm/mV
Patient current leakage < 10µ A Recorder High resolution thermal printer
Specification of fuse T1.6A 250V Ø5×20 Battery Built-in rechargeable Li-ion battery 11.1V(4000mAh)
Recording paper Thermal recording paper Package 360mm*250mm*68mm
