Sv-5q Portable Automobile Multi Exhaust Gas Analyzer Factory Price Portable Car Exhaust Analyser Five Gas Exhaust Detector Gas Analyzer

Product Description

Main Feature of Portable Automobile Multi Exhaust Gas Analyzer
1. Up to the standard GB/T18285-2005
2. Using infrared absorption spectroscopic method principle, through the analysis of the microcomputer measure the car emissions of HC and CO, CO2, O2, NO(except 4Q) concentration
3. Have idle, double idle speed test function
4. Configuration of 7 inches high brightness LCD display, support for multiple language menu operation
5. Automatic calculation, lambda value shows that excess air coefficient
6. Equipped with RS - 232 - c digital serial communication interface, convenient network
7. More than 500 groups of data storage, refer to the function
8. Configurable printers, print can be input, output, license plate number
9. For the three kinds of fuel gas, liquefied gas and gasoline vehicle exhaust test
10. With the power inverter, car convenient accessory exhaust inspection
1. SV-5Q Portable Automobile Multi Exhaust Gas Analyzer is a new multi 5 gas analyzer which developed from four gas analyser, it equipped with large-screen LCD display English menu;
2. Used to measure vehicle engine flue exhaust gas CO, HC, CO2, O2, NOx concentration and λ values and COcor
3. Idle with a single, dual idle speed, general-purpose measurement function
4. Measurable by gasoline, LPG, CNG, and alcohol-fueled vehicles
5. National standard and the United States under the new BAR-97 standards for research and development,1-level precision
6. With auto-zero, automatic cleaning, automatic temperature compensation, pressure compensation
7. With the HC residual measurement, traffic monitoring, gas path leakage inspection
8. With rotational speed, oil temperature measurement channels, built-in printer (analog) interface for the choice
9. License plate number can be entered, and 2000 sets of data storage, for future reference function, the clock display Technical Specification of SV-5Q Portable Automobile Multi Exhaust Gas Analyzer

Measurement Range	CO	0~10×10-2 (%)vol
	CO2	0~20×10-2 (%)vol
	HC	0~10000×10-6 (ppm)vol
	O2	0~25×10-2 (%)vol
	NO	0~40000×10-6 (ppm)vol
Indication Error		Absolute error		Relative error
	CO	±0.06×10-2(%)vol		±5%
	CO2	±0.5×10-2(%)vol		±5%
	HC	±12×10-6 vol		±5%
	O2	±0.1×10-2(%)vol		±5%
	NO	±25×10-6 vol		±4%
Preheating Time	10 min.(3 min. warm-up for fast measurement)
Environmental condition	Temperature		-5~40 centigrade
	Humidity		no more than 85%
	Atmospheric pressure		86~106kPa
	Power		AC 220V±10%; 50 Hz±1Hz
Gross Weight	9.8kg
Packing Size	420*320*250(mm)

Parmaters of QH5 Automobile Exhaust Emission Gas Analyzer for Sale

	measurement range	basic error
HC	0 ~ 10000 10-6 ( ppm ) vol	± 5%
NO	0 ~ 5000 10-6 ( ppm ) vol	± 4%
CO	0 ~ 10.0 10-2(%)vol	± 5%
O2	0 ~ 25.0 10-2(%)vol	± 5%
CO2	0 ~ 20.0 10-2(%)vol	± 5%

Brand	China Coal
Packing Details	carton box, plastic bags, wooden cases or as your requirement
Delivery Time	5-10 days after your payment
Payment Terms	TT, Western Union and Paypal
Supply Ability	1000 sets per month
Minimum Order Quantity	1 set
Price Terms	FOB
Port	Qingdao,Ningbo,Shanghai,Shenzhen

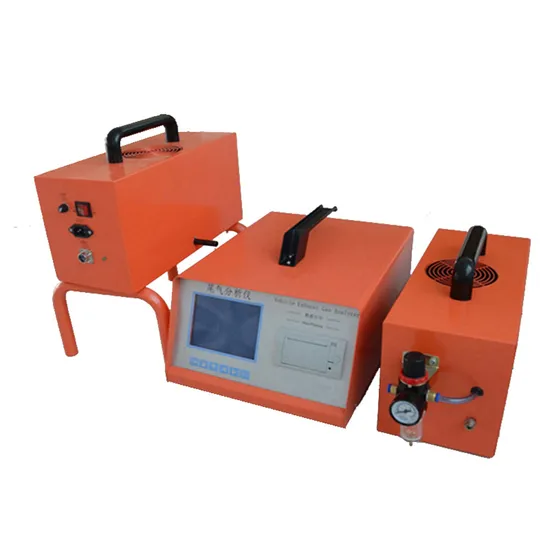

Photos of Automobile Exhaust Emission Gas Analyzer for Sale
FAQ
1.Factory
Q: Are you bagger machine manufacturer?
A: We are the Gas Analyzer machine manufacturer. china coal Gas Analyzer factory address is: Jizou Road, Jining city, Shandong
province, China.
2. Warranty
Q: How to identify the quality about Gas Analyzer machine for sale?
A: Our Gas Analyzer machine have a 12 months warranty after sale.
3. Packing
Q:What is the container size of cheap Gas Analyzer machine?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Gas Analyzer machine, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
5.Customer
Q: Where country customer you sale about chinese Gas Analyzer machine for sale?
A: excavator in dubai , Gas Analyzer machinefor sale malaysia , Gas Analyzer machine price in india , our customer also in Australia, USA,
Hongkong, Taiwan, and southeast asia. Our Advantages

---
