US$2.00-10.00
|
500 Meters
(MOQ)
|
Basic Info.
Application
Overhead, Heating, Underground
Conductor Material
Copper
Range of Application
Cold-Resistant
Certification
ISO9001, CE, RoHS
Conductivity
From 15% to 70%
Supply Ability
500000meters Per Month
Transport Package

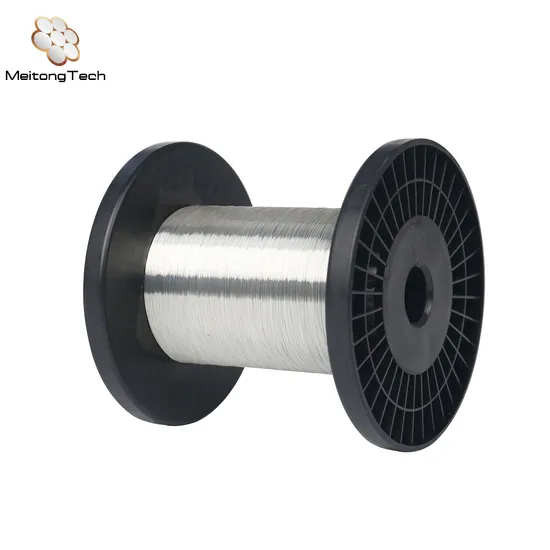

ABS Spool
Specification
8x20x0.05MM
Production Capacity
500000
Product Description
Electric Wire Flat Copper Braided Wire
Application
Braided copper wire is deseigned according to customer needs.It's used for various types of circuit breakers,
switches,electrical appliances,apparatus,brush manufacturing
Copper braided wire's products standards:SHFS
Copper braided wire's product type:TZ.TZX
Our Advantages
1.Better price-less expensive than copper,reducing costs of material for cable production.
2.Higher conductivity-electrical conductivity much higher than pure aluminum.
3.Lighter weight-easy to transport and install thus saves labor cost.
Product Description
TZ,TZX
| Section mm² |
Structure
Number of wires * qty /diameter
of a single wire | Size mm | 20ºC direct currentresistance
(Ω/km)
no more than |
Calculating weight kg/km |
| Standard | Calculating | | The Max width | Thick ness for reference | TZ | TZX | |
0.3
0.4
0.5
0.75
1
1.5
2
2.5
3
3.5
4
5
6
8
10
12
16
18
20
22
25
30
35
40
50
60
70 | 0.314
0.392
0.502
0.753
1
1.505
2
2.49
3.01
3.51
4.01
5.01
6.02
8.03
10.03
12.04
16.06
18.06
20.07
21.9
25.03
31.38
36.12
41.7
50.05
59.83
69.81 | 8*20/0.05
8*25/0.05
8*32/0.05
8*48/0.05
8*64/0.05
8*96/0.05
8*126/0.05
8*159/0.05
8*3*64/0.05
8*4*56/0.05
64/0.05
8*5*64/0.05
8*6*64/0.05
8*8*64/0.05
8*10*64/0.05
8*6*128/0.05
8*8*128/0.05
8*9*128/0.05
0* 28/0 0E
12*10³ 33/0.0
16*9*128/0.05
16*10*133/0.05
16*6*266/0.05
16*6*318/0.05
16*7*318/0.05 | | | 60.13
48.16
37.61
25.07
18.89
12.55
9.44
7.58
6.27
5.38
4.71
3.77
3.14
2.35
1.88
1.57
1.18
1.05
0.94
0.86
0.75
0.61
0.52
0.45
0.38
0.32
0.27 | 63.31
50.71
39.60
26.40
19.88
13.21
9.94
7.98
6.60
5.66
4.96
3.97
3.30
2.48
1.98
1.65
1.24
1.10
0.99
0.91
0.79
0.64
0.55
0.48
0.40
0.33
0.39 | 3.1
5
7.5
10
15
20
30
35
40
50
60
80
100
120
160
180
200
220
250
312
361
417
500
598
698 |
Package Details
| NO. | DIN130MM | DIN185MM | DIN250MM | DIN400MM | DIN800MM |
| A | 130MM | 185MM | 250MM | 400MM | 800MM |
| B | 65MM | 130MM | 160MM | 160MM | 370MM |
| C | 100MM | 160MM | 160MM | 260MM | 490MM |
| D | 120MM | 180MM | 200MM | 290MM | 520MM |
| E | 21MM | 31MM | 31MM | 56MM | 126MM |
Ramk:Can be customized
Certifications
Production Facility
Quality Control Centre
FAQ
Do you accept OEM or ODM?
Of course.We also have a professional design team who can assistant you to design.
What is minimum order quantity?
Usually accept 500 kgs for trial order , it is depended on different items with different materials and sizes.Please kindly contact us for details! Thanks!
What is your sample policy?
1.Paid samples are available as per requirement and specifications.Usually we only charge $50/time,usually within 10kgs.
2.Sample will be sent to you by express with freight collect, so please inform us your courier account number,or you can prepay to us the express cost which we have best channel lower to 70% discount.
What certification do you have?
Our product has passed the ISO certificate.Quality management system,American needed certification,also complete the BSCl audits.And some other needed third party test report and certifications.
What information should I let you know if i want to get a quote?
Please offer the specification of the product if possible.Such as material,logo color,size, content list, quantity.etc.Or contact us directly just by a thought.
What is the delivery date?
Our products are normally shipped about 25 days after order confirmation. But it may take longer or shorter up to different order quantity.
How can I know order status?
We will acknowledge receipt of your order by e-mail. Some further emails will be sent to you to check about the production details of your goods by specific sales assistant. We will contact you if we have any queries about productions .lf you don't receive any email from us, which means your production goes smoothly and will be shipped as our contract. You can also contact us if you have any question. PP sample photos will send to you before we produce,Bulk sample photo wil send to you before we ship.
>>
