US$8,000.00-15,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Multi-Axis Automatic and Semi-Automatic Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Certification
CE, ISO 9001
Working Area
1500mm*300mm
Spindle
3.5kw Air Cooling Spindle
Controller
DSP Control System
Ball Screw
Tbi Ball Screw with High Precision
Transport Package
Plywood Box
Specification
2500mm*400mm
Production Capacity
1000 Sets/Year
Product Description
CNC Engraving and Drilling Machine

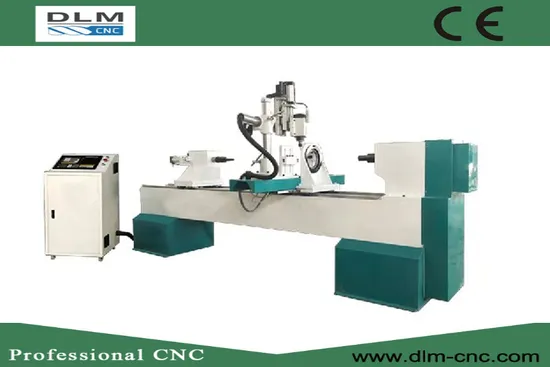

| CNC- 1530 Single Axis with Double knife CNC woodworking lathe |
| Model CNC-1530 | |
| Specification : |
| Working area | 1500mm(length)*300mm (diameter) | Engraving code | Standard G code,u00,mmg,plt |
| Machine body | Heavy-duty integral full-cast bed body, independent control cabinet | Security system | XYZ: Three axis all photoelectric limit |
| Motor | 5.5KW / Three-phase asynchronous motor | Repeat positioning accuracy | ±0.02mm |
| Driving mode | YAKO | Machine weight | 1800kg |
| Inverter | BEST | Machine size | 3100*1300*1400mm |
| Motor speed | 0-6000r/m | Tool box | Turning knife, wrench, hand wheel, thimble, clip head, oil pot, oil and water separator, relay, photoelectric limit. |
| Driving mode | XY Axis: 25TBI ball screw,
Z Axis: high-precision helical racks/TBI32ball screw | | |
| Rail | Taiwan HIWIN 25mm linear rail | | |
| Cable | Pure copper cable | | |
| Control system | Special control system panel,1000TC | | |
| Lubrication system | Automatic Oil lubrication system | | |
| Working voltage | AC380V/220V 50/60Hz | | |
| Compatible software | Artcam,type3,CAD drawing,CDR,Jingdiao,Wentai, etc. | | |
Characters:
1,DSP Control System(U Disk
2,Taiwan linear rail and TBI2505 ball screw
3,Center of gyration and knife holder
4,Quadrupole 380V frequency spindle
5,Electrical automatic brake converter
6,Pneumatic pressure plunger(optional: USD150/set );
7,Vientiane support four shaft flat engraving (Optional: USD 1500/set )
Application:
Stairecase column, curved circle, vase, desk and chair legs, European-style staircase column, wooden hangers and washbasin, cylindrical, cone, arc, sphere and complex shapes of rotors of wood semi-finished products.
>>
