Product Description
Product Description

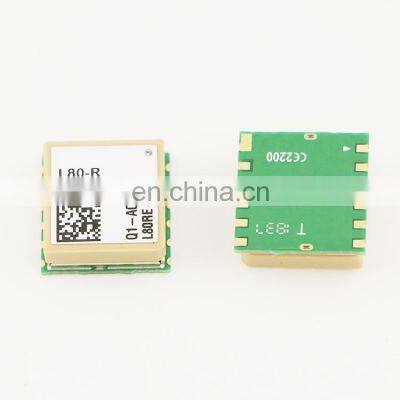

DescriptionGPS-only L80-R● POT GPS module● 16.0mm × 16.0mm × 6.45mm● 6g● LCC package● 66 acquisition channels and 22 tracking channels● Operating temperature of -40°C to +85°COverview● The L80-R is a POT (patch antenna on top) GPS module measuring 16.0mm × 16.0mm × 6.45mm, with 66 acquisition channels and 22 tracking channels. With an LCC package and integrated patch antenna, the L80-R has exceptional performance both in acquisition and tracking, is cost-efficient for ROM-based versions, and its space-saving design makes the module ideal for miniature devices.● EASY™ (Embedded Assist System for self-generated orbit prediction) technology allows the L80-R to calculate and predict orbits automatically using up to 3 days of ephemeris data stored in the RAM, so it can fix position quickly and with low power consumption, even when signal levels are lower.● The L80-R’s ultra-compact design, low cost and low power demands, combined with its excellent precision and high sensitivity, make the L80-R suitable for a broad range of IoT applications such as portable devices, automotive, personal tracking, security and industrial PDAs. The module is especially suitable for special applications like GPS mouse receivers and on-board diagnostics.Key Features● Ultra-low power consumption in tracking mode (20mA)● Supports short circuit protection and antenna detection● Built-in LNA● Supports EASY™● Supports QZSS● High sensitivity: -165dBm during tracking, -148dB during acquisition● Balloon mode enables altitude of up to 80km● Multi-tone active interference canceller for anti-jamming● PPS VS. NMEA can be used for time serviceWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
