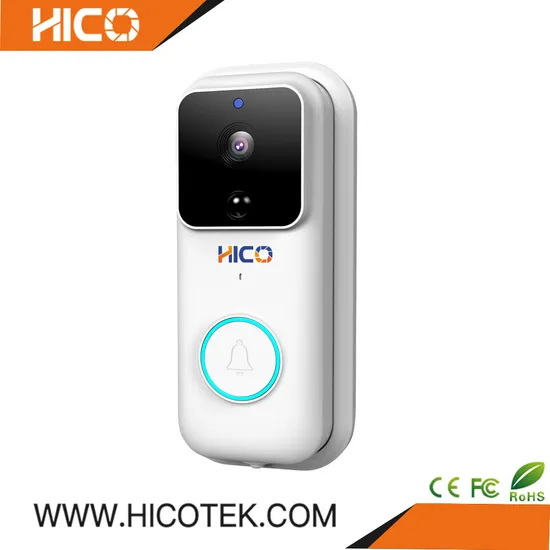

Hicotek APP Two-Way Audio Wireless Indoor Action Night Vision System Video Door Phone Camera

Product Description

WIP-HADB7Features:
Wireless WIFI Smart Doorbell Camera
1.7mm Wide Angle (166°) Lens
IR LED: F8*6pcs, IR Range: 8 M
PIR Motion Detection, WDR
Support SD Card (Max 32GB)
WIFI Auto Match, Phone App For iPhone and Android
Push Alarm to Smart Phone, Two-way Audio
Support Cloud Storage
PSU: AC/DC 8-24V; 2x 18650 Battery

Model NO.	WIP-HADB60M10	WIP-HADB60M20S
Chipset
Image Sensor	1/4"OmniVision	1/2.8" Sony
Main processor	Hi3518E	HI3516C
Resolution	720P	1080P
Effective Pixels	1280(H)*720(V)	1920(H)*1080(V)
Compression	H.264/JPEG/AVI/MJPEG	H.264/JPEG/AVI/ MJPEG
TV System	PAL/NTSC Adjustable
Electronic Shutter Time	Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio	≥52dB
Scanning System	Progressive
Lens
Focus Length	1.7mm (166°Wide-angle)	1.7mm (166°Wide-angle)
Focus Control	Fixed	Fixed
Lens Type	Fixed	Fixed
Pixels	2MP	2MP
Night Vision
Infrared LED	IR LED: F8*6pcs (850nm)
Infrared Distance	8M
IR Status	Under 10 Lux By CDS
IR Power On	CDS Auto Control
Network
WIFI	2.4GHz WiFi (IEEE 802.11 b/g/n)
P2P	YES
Red LED Blink	Power OK, Waiting for WiFi Connection
Blue & Red Blink	WiFi Setting Succeed, Waitting for APP Connection
Blue LED Blink	Power & Network OK, Device in Working Status
LED OFF	No Power / StandBy Mode
OS Require	iOS (V10.0 or Above) or Android (V5.0 or Above)
SD Card	Support Max 32GB TF-card
Cloud Storage	YES
Audio Input	Internal Microphone (38dB)
Pickup Range	5 Meters
Audio Output	Internal Speaker (38dB)
Audio Type	Two-way Audio with Noise Cancellation
Video Quality	1280*720@25fps	1920*1080@18fps
Video Mode	Manual Video; Alarm Video
Smart Phone	iPhone, Android
Camera Features
Day/Night	Color/ B&W (Auto ICR )
BLC	Support	Support
AGC	Support	Support
WDR	Support
Motion Detection	Smart PIR Sensor (Sensitivity Editable)
Device Wakeup Time	Within 600ms
General
Housing	Plastic for Indoor Use
Bracket	YES
Operation Temperature	-20ºC ~ +55ºC RH95% Max
Storage Temperature	-25ºC ~ +60ºC RH95% Max
Power Type	Hardwire AC/DC 8V-24V or Rechargeable 18650 Battery
Consumption	Working Mode: 170mA Standby Mode: 200μA
Dimension	63(L)*34.5(W)*139(H)mm
Weight	450g
