120A Single Dual Coil 12V 3 Phase Latching Relay for 12 Volts System/Inverter/Discharge Controller

Product Description

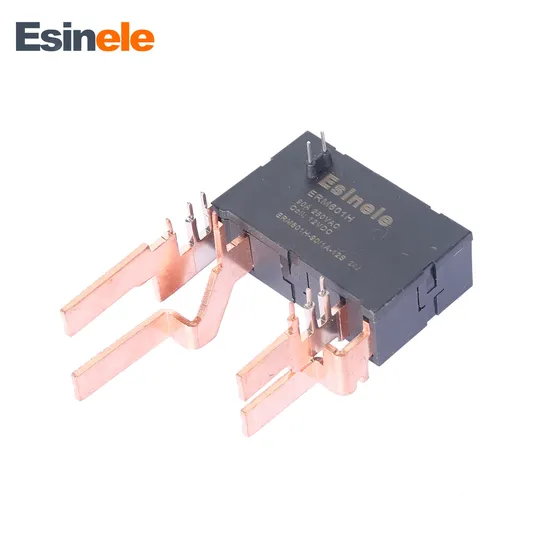

ERM601H
Characteristic:
120A two set of contacts switching capability.Only impulse excitation needed, both for single and double coil.Low power consumption, small in size.Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt.4KV dielectric strength between coil and contacts.RoHS compliant.Outline dimensions:(87x 52 x28) mm ERM601H
Characteristic:
120A two set of contacts switching capability.Only impulse excitation needed, both for single and double coil.Low power consumption, small in size.Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt.4KV dielectric strength between coil and contacts.RoHS compliant.Outline dimensions:(87x 52 x28) mm
Product Parameters

Contact Specification
Dimensions(mm)	87×52×28mm
Contact Form	2A/2B
Contact Material	Silver Alloy
Max Switching Current(Anti-load)	120A
Max Switching Voltage	28VDC/250V AC
Max Switching Power	3300W/30000V A
Wight	210g

Coil Specification
Rated Coil Voltage		9VDC	12VDC	24VDC	48VDC
Rated Coil Voltage	Single Coil (±10%Ω)	32	58	230	920
	Double Coil (±10%Ω)	16	29	115	460
Power Consumption		Single Coil 2.5W;Double Coil 5.0W
Pick-up Voltage		≤75% Rated Coil Voltage
Drop-out Voltage		≤75% Rated Coil Voltage
Max. Applicable Voltage		≤120% Rated Coil Voltage
Pick-up Time(At Rated Voltage)		≤50ms
Drop-out Time(At Rated Voltage)		≤50ms
Bounce Time		≤2ms

Characteristics
Ambient Temp		-40~+70ºC
Ambient Humidity		≤75% Annually average
Anti-vibration		10~55Hz, 0.5mm (Double Amplitude)
Anti-shock		98m/s2 , 11ms
R.H.		45%~85%
Contact Resistance		≤2.0mΩ (1A/6VDC)
Insulation Resistance		1000MΩ (500VDC)
Dielectric Strength	Between Contacts	2000VAC 50/60Hz(1 Minute)
	Between Contact & Coil	4000VAC 50/60Hz(1 Minute)
	Between Contact & Contacts	6000VAC 50/60Hz(1 Minute)
Life	Electrical Life	≥1×104 OPS
	Mechanical Life	≥5×105OPS

External Diagram

Wiring Diagram

Production Equipment
