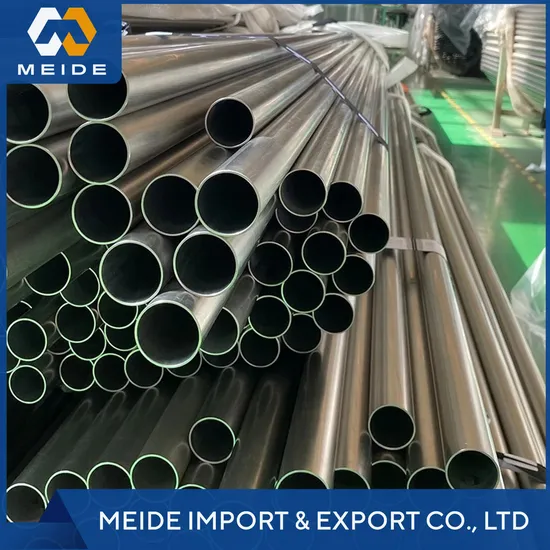

ASTM B348 B338 Seamless Titanium Tube Gr2 Ta2 Gr5 Gr23 Tc4 for Automobile Exhaust Pipe of Various Specifications Provided by The Manufacturer

Product Description

Product Description The titanium tube is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium tubes as standard tubes for their units.

Specification Chart Of	Titanium Tube
Type Of Tubes	Seamless tube And Welded Tubes
Type Of Manufacturing	CDW, DOM, CEW, Fabricated, ERW, Welded
Outside Diameter Of Tubes	6 to 304.8 mm
Standard	GB/ DIN/ EN/ SUS/ JIS/ AISI/ ASTM
Size Range	6.00 millimeter OD up to 914.4 millimeter OD
Thickness Size:	0.3mm - 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS
Length	1-10000mm

Chemical Composition (%)

Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	Balance
Gr2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	Balance
Gr3	0.05	0.08	0.015	0.3	0.35	/	/	/	/	/	Balance
Gr5	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5	/	/	/	Balance
Gr7	0.03	0.08	0.015	0.3	0.25	/	/	0.12-0.25	/	/	Balance
Gr9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	/	/	/	Balance
Gr12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2-0.4	0.6-0.9	Balance

Mechanical property

Grade	Tensile Strength (Min)		Yield Strength (Min)		Elongation(%)
	ksi	Mpa	ksi	Mpa
Gr1	35	240	20	138	24
Gr2	50	345	40	275	20
Gr3	65	450	55	380	18
Gr4	80	550	70	483	15
Gr5	130	895	120	828	10
Gr7	50	345	40	275	20
Gr9	90	620	70	438	15
Gr12	70	438	50	345	18

Product specification Grade : Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Standard: ASTM B337,ASTM B338,ASTM B861
Specifications :
1.Dimensions
A).Seamless titanium tube range:
OD:2.0mm-219mm
WT:0.3mm-120mm
Length: <18000mm
Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23
B).Welded titanium tube range:
OD:6mm-219mm
WT:0.5mm-10mm
Length:<18000mm
Material: Gr1,Gr2,Gr3,Gr5,Gr9

Name	Size(MM)	Grade
Seamless Tubes	OD(3~114)×(0.2~6.0)×L	Gr1,Gr2,Gr3,Gr4,Gr5, Gr7,Gr11,Gr23etc
Welded Tubes	OD (10~40)×(0.5~5.0)×L
Extruded Tubes	OD (25~210)×(6.0~30)×L

product application 1) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear)2) Fluid, gas and oil transport3) Pressure and heat transmission4) Construction and ornament5) Boiler heat exchangers6) motorbycle and bike
FAQ 1.Are you a manufacturer or a trader?
We're a manufacturer with more than years of professional production experience.
2.Can you accept OEM?
Yes, OEM is acceptable. Just pls provide us with the drawing or sample, we will production totally according to your requirements.
3.Can you provide us with the design drawing?
Yeah, of course, we will provide you with the drawing after you paid or prepaid.
4.Can your factory produce products according to our drawings?
Yes, we can. Most products can be customized, including the Logo on products.
5.What kind of your packaging?
Neutral plywood or wooden box packaging or according to customer's requirements.
6.How long is your delivery time?Which ports are accepted for delivery?
Normally 30days after payment, and we promise we will deliver as soon as we can.It can be delivered from Qingdao, Tianjin, Shanghai, Guangzhou and other ports.
7.How can we get your price ?
A. We need below information to quote for you:
1). Product Name
2). Standard
3). Material Grade (Chemical Composition)
4). Dimension
5). Quantity
6). The Drawing for Special Parts

---
