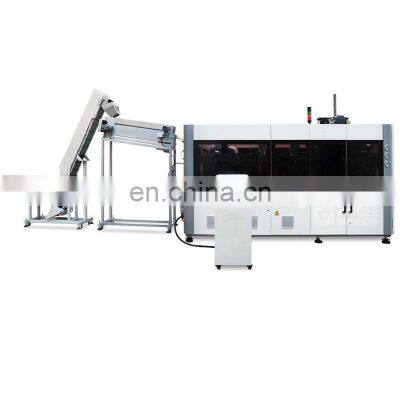

Auto PET plastic blowing machine blower bottle making machineProduct DescriptionMachine description:1.Use continuous rotating feeding system, and the feeding system has multiple safety protection devices to ensure high speed preform supply.2.Small heating distance between preform, effective use of lamp heating space, improve preform heating efficiency and energy saving effect.3.The water channel of the heating box runs through directly, install cold air system to ensure that the screw of the preform does not deform.4. Optimize heating tunnel take out wind and the surface cooling of the preform. The reversible heating box is convenient to replace the heating lamp.5.Clamping machine adopts cam gearing, chain - free plate pin shaft, small volume, long service life.6.Air inlet, pre-blowing, blowing pipe use hard pipe, air source is more cleaner, no pollution.7.Take preform and bottle adopt the hard claw, then more stable, never wear, long service life.8.The blowing mould is equipped with a slide, which is convenient to change the mould.9. The perform unscrambler can be positioned in multiple directions and can be selected flexibly according to actual situation.10.Human-machine interface control system, using 9 inch screen to complete and simple operation.11.The machine design is compact and small volume, which effectively reduces the floor space. Main machine :Detailed ImagesDetailed images of each partFeeding preform system: single channel enter preform, use star wheel enter preform, effectively solve the problem of stuck preform and bottle preform wear.Rotating system: use special chain, driven by servo motor, so that the heating unit in the movement of stable, fast positioning, low noise.Heating system: adopting rotary bottle blowing machine mode heating and conveying, can reduce energy consumption, greatly improve heating speed and quality.Mold system: adopt high pressure mold locking technology, no expansion phenomenon, and clamp mold line is thin. The mold adopts drawer type structure, and is positioned on the back plate of the mold with four fixed pull rods, which can be easily replaced within half an hour.Stretch and blow system: cycle time of one blow, two blow can be adjusted, according to the customer's different preform and different bottle type, each pull rod can be adjusted separately, high flexibility.Electronic control system: Pneumatic and electrical components adopt international famous brands, touch screen control system is easy to operate, with perfect monitoring and induction settings, with fault diagnosis function, automatic calculation of the report function, know the production efficiency of each shift. Main technical parameter:CompositionItemParameterBottle conditionsMax.bottle volume2000mlMax.bottle diameterΦ108mmBottle neck sizeΦ18mm~ Φ38mmMax.bottle height340mmMax.bottle preform height165mmClamping stroke125mmBottle die stroke50mmBottle distance114.3mmCapacity8000-8500BPHMold cavity6Heating partHeating unit6Number of heating lamp layers8Bottle pedestal96Electrical parametersVoltage380V 50/60HZUse power50-60kw/hInstalled power112kwAir supplyLow pressure compressed air pressure1MPaAir consumption of low pressure compressed air1.0m3/minHigh pressure compressed air pressure3.0MPaAir consumption of high pressure compressed air10.0m3/minCooling waterPressure2-4barFlow6m3/hWeightMain machine, heating machine, electric control boxabout 8.0tDimensionMain machine5500*2350*2500mmPreform unscrambler2950*2120*3200mm Working process of blow molding machineConfigurationAutomatic blowing machine configurationItem Name of main spare partsBrand name1Touch Screen 2Computer PLC controller3Servo motor4Frequency Converters5Magnetic Valve6One-way valve7Muffler8Voltage regulator9Monolithic breaker 10Single Separator 11 Double Separator 12Air Cylinder Company information Workshop detail Our team Why choose Grandee Machinery?
>>
